Dongfeng Four Drive Light-duty Off-road Truck

Short Description:


Product Detail

Product Tags

Product Description

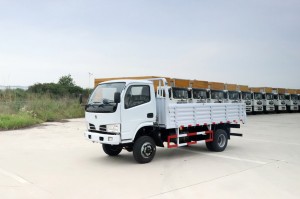

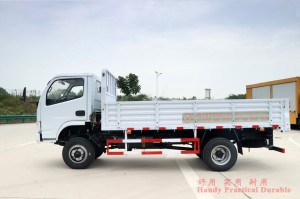

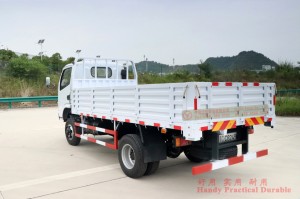

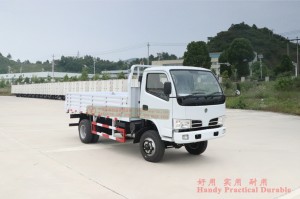

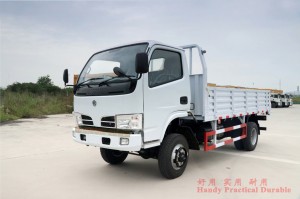

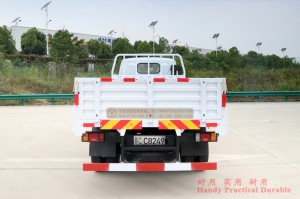

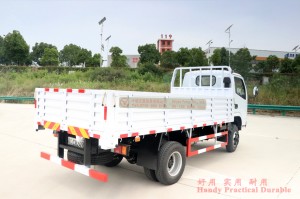

Dongfeng Four Drive Light-duty Off-road Truck . The chassis of this truck can be used to modify the green sprinkler , Dump trucks, garbage trucks, vanes, etc.

Product Parameter

Basic Configuration
Drive Mode 4×4
Engine 4102QB
Gearbox Mechanical Manual five speed
Transfer case High-low speed

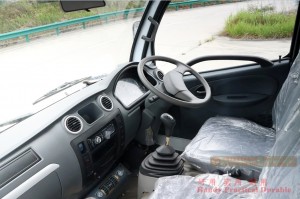

Cab Three seats
Axle Max. Load 1.5Tons/4.5Tons (Front/Rear)
Tyre 7.00R16LT (6 + 1)
Performance Parameter
Overall Dimension(mm) 6025×2075×2575(Length×Width×Height)
Cargo size(mm) 4325×2075×550
Wheelbase(mm) 3300
Total Mass(kg) 6000 Curb Weight(kg) 3340
Power(kW/rpm) 66.2 Displacement(L) 3.7
Approach Angle (°) 28 Departure Angle (°) 15
Ground Clearance(mm) 198 Fording depth (mm) 485
Max. Speed(km/h) 85 Tank Capacity(L) 90

This parameter is for reference only. The margin of error is plus or minus three percentage points.
