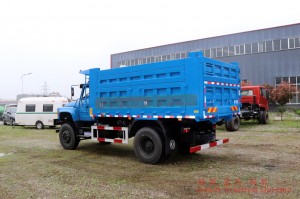

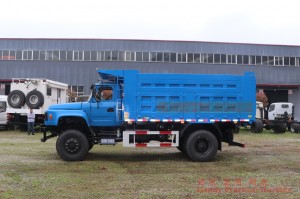

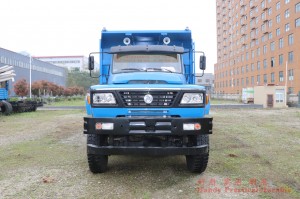

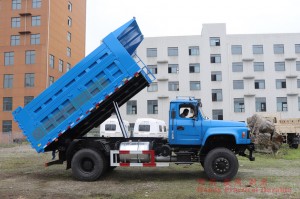

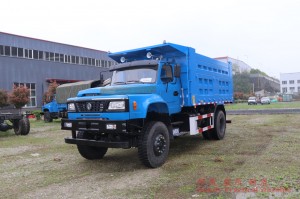

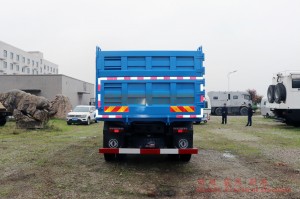

Dongfeng Four drive long-head dump truck
Product Description
Dongfeng four drive off-road dump truck.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | YC6A210-33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

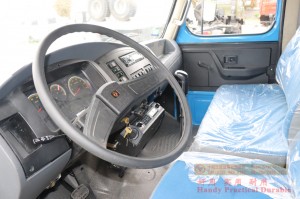

| Cab | Three seats |
| Axle | Max. Load 4.5Tons/13Tons (Front/Rear) |
| Tyre | 11.00R20 (4 + 1) |
| Electrical appliance |
24V Circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7150 × 2300 × 1400(Length×Width×Height) | ||
| Cargo size(mm) | 4200× 2180 × 900 | ||
| Wheelbase(mm) | 4150 | ||
| Total Mass(kg) | 17500 | Curb Weight(kg) | 9500 |
| Max. Power(kW/rpm) | 154 | Displacement(L) | 7.2 |
| Approach Angle (°) | 29 | Departure Angle (°) | 17 |
| Ground Clearance(mm) | 360 | Fording depth (mm) | 660 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 220 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
