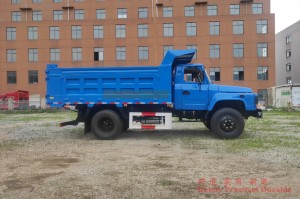

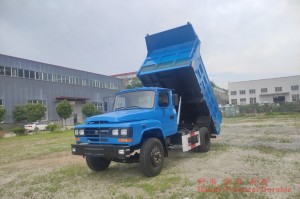

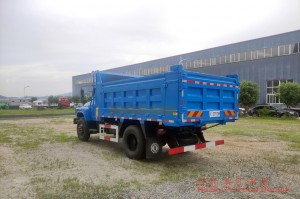

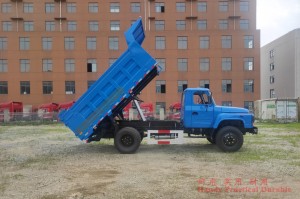

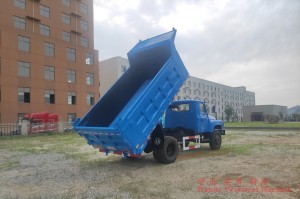

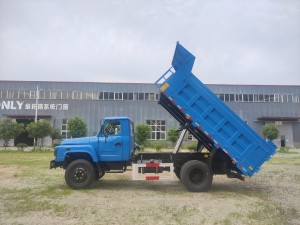

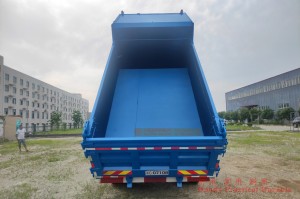

Dongfeng Four Drive Off-road Dump Truck
Product Description
Dongfeng Four Drive Off-road Dump Truck
Product Parameter
Basic Configuration | |
Drive Mode | 4×4 |
Engine | 4102QBZL |
Gearbox | Mechanical Manual five speed |
Transfer case | High-low speed |
Cab | Three seats |
Axle | Max. Load 3Tons/6Tons (Front/Rear) |
Tyre | 8.25R20 (6 + 1) |
Electrical Appliance |
24V circuit system |
Performance Parameter | |||
Overall Dimension(mm) | 6640 × 2400 × 2730(Length×Width×Height) | ||
Cargo size(mm) | 3950 × 2400 × 1620 | ||
Total Mass(kg) | 9000 | Curb Weight(kg) | 5810 |
Max. Power(kW/rpm) | 85 | Displacement(L) | 3.8 |
Wheelbase(mm) | 3700 | Ground Clearance(mm) | 260 |
Max. Speed(km/h) | 78 | Fording depth (mm) | 78 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
