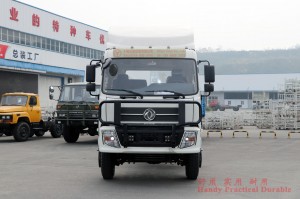

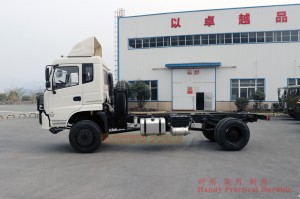

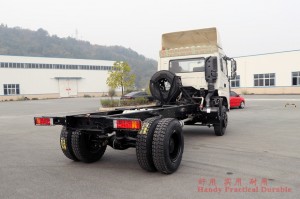

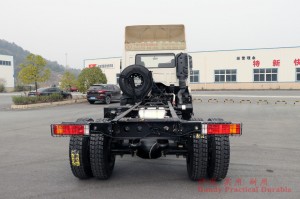

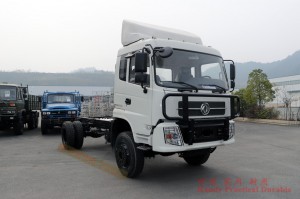

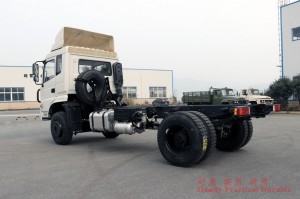

Dongfeng Four Drive Off-road Truck Chassis
Product Description
Dongfeng Four Drive Off-road Truck Chassis. This chassiscan be modified to be truck, green sprinkler , Dump trucks, garbage trucks, refigerated truck, vanes, etc.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 5.5Tons/10Tons (Front/Rear) |
| Tyre | 11.00R20 (6+1) |
| Electrical Appliance | 24V circuit system |
| Upset Configuration | The car is filled with high quality FRP, and the middle is filled with 7.5cm thick thermal insulation materials, aluminum alloy profiles, door frames, and locks are stainless steel. |
| Performance Parameter | |||
| Overall Dimension(mm) | 6950 × 2200 × 3600(Length×Width×Height) | ||
| Modification size(mm) | 4300 | ||
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 4500 | Displacement(L) | 5.9 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
