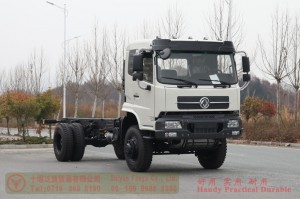

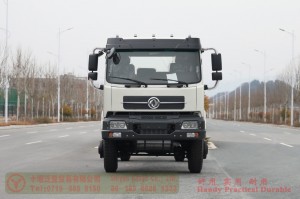

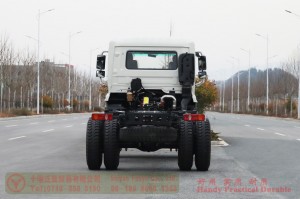

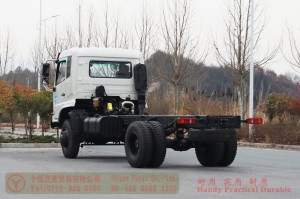

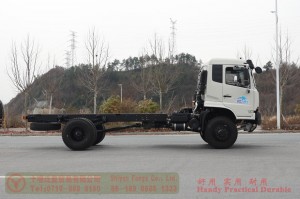

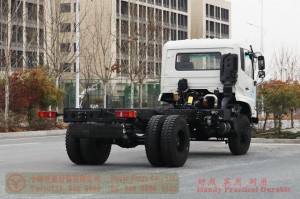

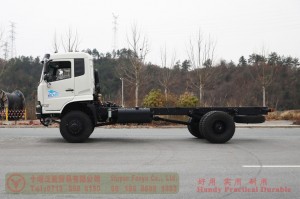

Dongfeng fuel truck chassis modification–4*4 truck chassis–Off-road truck chassis for export
Product Description
Tanker truck: also known as mobile gasoline truck, computer tax-controlled gasoline truck, lead tanker, oil loading truck, oil truck, oil truck, oil puller, oil truck, edible oil truck, mainly used as a derivative of petroleum (gasoline, diesel fuel, crude oil, lubricants and coal tar and other oils) of the transportation and storage.
According to different purposes and use of the environment there are a variety of refueling or oil transport functions, with oil suction, pumping oil, a variety of oil filling, separation and release and other functions. The special part of oil tanker consists of tank, extractor, drive shaft, gear oil pump, pipe network system and other components. The pipe network system consists of oil pump, three-way four-position ball valve, two-way ball valve, strainer, pipeline.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins C260 33 |
| Gearbox | Manual nine speed |
| Transfer case | High-low speed |

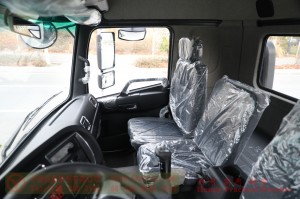

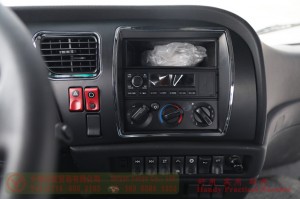

| Cab | Three seats |
| Axle | Max. Load 5Tons/13Tons (Front/Rear) |

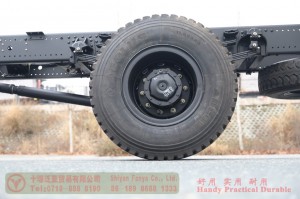

| Tyre | 11.00R20（6+1） |
| Electrical appliance | 24V circuit system |
| Performance Parameter | |||
| Chassis Dimension(mm) | 8050× 2470× 3080(Length×Width×Height) | ||
| SuperstructureDimension(mm) | ＞5800 | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 6520 |
| Max. Power(kW/rpm) | 191 | Fuel Tank Capacity(L) | 300 |
| Wheelbase(mm) | 4700 | Displacement(L) | 8.3 |
| Approach Angle (°) | 20 | Departure Angle (°) | 18 |
| Fording Depth（mm） | 565 | Overrun Height（mm） | 620 |
| Max. Speed(km/h) | 90 | Wheel Span(mm) | 2180/1900 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
