Dongfeng new six-drive off-road type special chassis – 6 * 6 multifunctional modified chassis export – 210 hp Dongfeng vehicle chassis configuration

Short Description:

Product Detail

Product Tags

Product Description

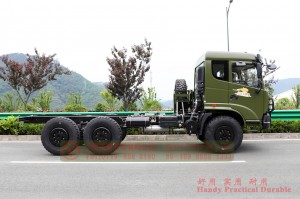

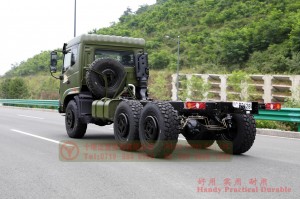

Dongfeng new six-drive off-road type special chassis, can be customized according to demand, installed with 170/190/210 hp engine, with 4m6 space at the rear for conversion into various types of vehicles. Powerful, excellent off-road performance, comfortable driving feeling.

Product Parameter

Basic Configuration
Drive Mode	6×6
Engine	Cummins B210 33
Gearbox	Mechanical Manual six speed
Transfer case	Time-sharing 6WD with high and low gears
Frame(mm)	860×232
Axle	Max. Load 5 Tons/5 Tons/5 Tons (Front/Middle/Rear)
Curicuit system	24V circuit system
Tyre	12.5R20 (6 + 1)
Other	With traction hook, electrical connector, air brake connector, cold start
Optional items	Heating and air conditioning, right-hand drive cab, reversing camera, winch, fording height device, crash bar

Performance Parameter
Chassis Dimension(mm)	7870 × 2580 × 2930(Length×Width×Height)
Modification size(mm)	≥4600
Total Mass(kg)	15000	Curb Weight(kg)	5700
Max. Power(kW/rpm)	155	Wheelbase(mm)	3540+1220
No. of members	3	Axlebase(mm)	1910/1880/1880
Max. climbing degree(mm)	1130	Departure Angle (°)	26
Approach Angle(°)	36	Vertical crossing height(mm)	510
Ground Clearance(mm)	330	Fording depth (mm)	640
Max. Speed(km/h)	≥87	Tank Capacity(L)	300
