Product Description

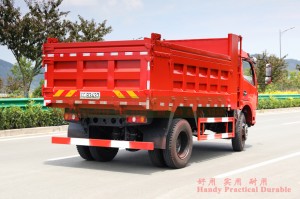

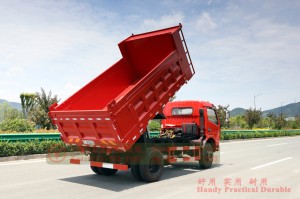

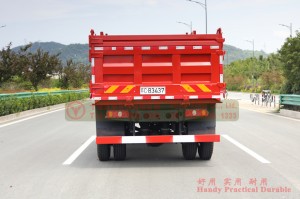

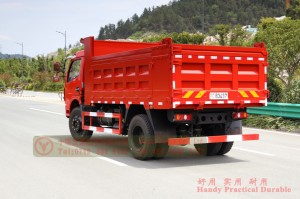

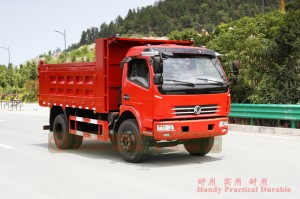

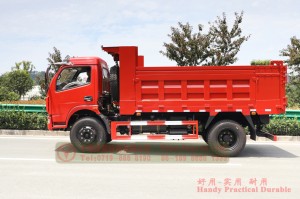

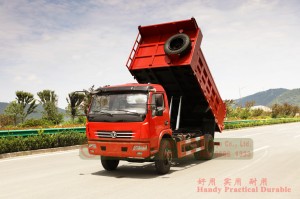

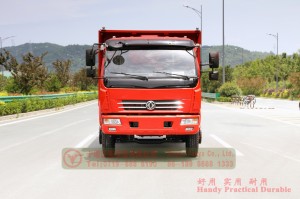

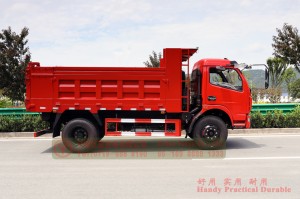

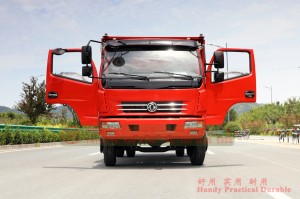

Dongfeng single-row 4*2 light tipper truck can carry 5 tons of cargo, adopting the middle double cylinder lifting structure, the box plate is thickened, and the tail box plate opens automatically when the cargo box is lifted. The left and right panels can be opened independently, and the tail panel can be opened in sections. Spare tire and ladder are installed in front of the cargo box.

Product Parameter

Basic Configuration
Drive Mode 4×2
Engine ISD 160 43
Gearbox Manual eight speed
Transfer case High-low speed
Cab Dongfeng single-row light truck cab
Axle Max. Load 4Tons/8Tons (Front/Rear)
Tyre 8.25R20 (6 + 1)
Suspension Steel plate spring 8/8+10
Circuit 24V circuit system
Other Heating and air conditioning, back-up camera, right-hand drive cab, brake cooling tanks
Performance Parameter
Overall Dimension(mm) 6118 × 2420 × 2850(Length×Width×Height)
Inside dimensions of cargo box(mm) 4000 × 2180 × (800+200)(Length×Width×Height)
Total Mass(kg) 12000 Curb Weight(kg) 6110
Payload capacity(kg) 5800 Axlebase(mm) 3550
Max. Power(kW/rpm) 140 Front/Rear suspension(mm) 1129/1439
Wheelbase(mm) 1780/1698 Displacement(L) 4.5
Approach Angle (°) 27 Departure Angle (°) 18
Ground Clearance(mm) 260 Fording depth (mm) 440
Max. Speed(km/h) ≥88 Tank Capacity(L) 140

This parameter is for reference only. The margin of error is plus or minus three percentage points.
