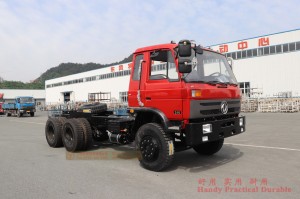

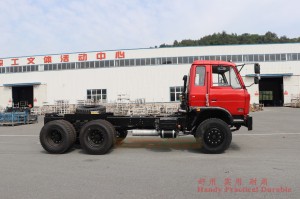

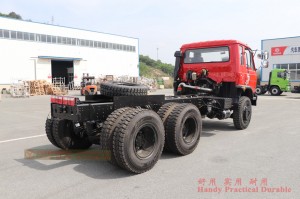

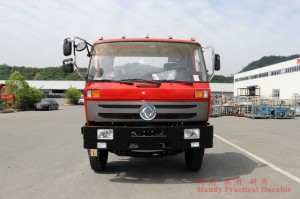

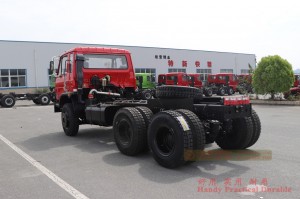

Dongfeng Six Drive 153 Off-road Dump Truck Chassis
Product Description
This chassis can be modified to be truck, dump truck and so on.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Yuchai YC6J210-33 |
| Gearbox | Eight speed |
| Transfer case | High-low speed |

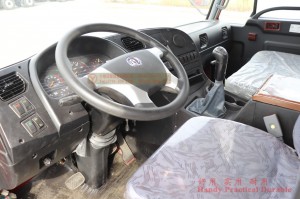

| Cab | Three seats, Dongfeng 153 cab |
| Axle | Max. Load 5Tons/10Tons/10Tons (Front/Middle/Rear) |
| Tyre | 10.00R20 (10 + 1) |
| Electrical | 24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7830 × 2500 × 3280(Length×Width×Height) | ||
| Modification size(mm) | 4700 | ||
| Total Mass(kg) | 20350 | Curb Weight(kg) | 10165 |
| Max. Power(kW/rpm) | 156 | Max. Torque(N.m) | 710 |
| Wheelbase(mm) | 3500+1300 | Displacement(L) | 5.9 |
| Approach Angle (°) | 30 | Departure Angle (°) | 48 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 600 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
