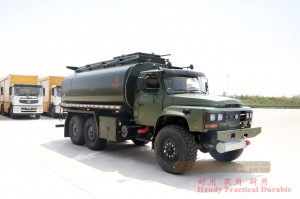

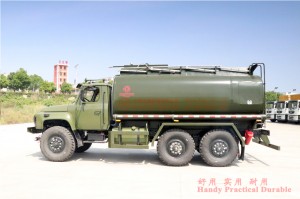

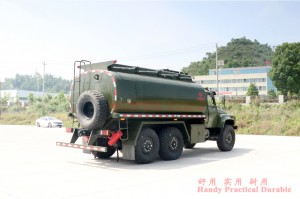

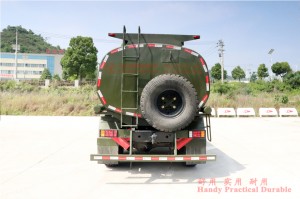

Dongfeng Six Drive EQ2100 Off-road Refuelling Truck

Short Description:


Product Detail

Product Tags

Product Description

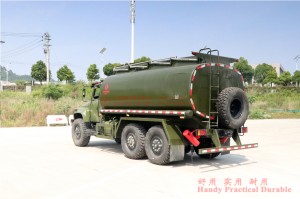

Dongfeng Six Drive EQ2100 off-road refuelling truck. This truck is modified by Dongfneg EQ2100 truck chassis. This vehicle chassis can also be used to modify the green sprinkler, Dump trucks, garbage trucks, vanes, etc.

Product Parameter

Basic Configuration
Drive Mode 6×6
Engine Cummins B190 33
Gearbox Mechanical Manual six speed
Transfer case High-low speed
Cab Three seats
Axle Max. Load 3.6Tons/3.5Tons/3.5Tons (Front/Middle/Rear)

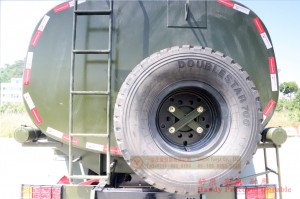

Tyre 12.5R20 (6 + 1)
Other 24V Electric System
Performance Parameter
Overall Dimension(mm) 7680 × 2440 × 3165(Length×Width×Height)
Tank size(mm) 3680×2300×3165
Total Mass(kg) 10800 Curb Weight(kg) 7910
Max. Power(kW/rpm) 140 Max. Torque(N.m) 640
Wheelbase(mm) 3600+1250 Displacement(L) 5.9
Approach Angle (°) 30 Departure Angle (°) 16
Ground Clearance(mm) 320 Max. Speed (km/h)
87

This parameter is for reference only. The margin of error is plus or minus three percentage points.
