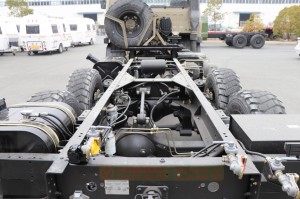

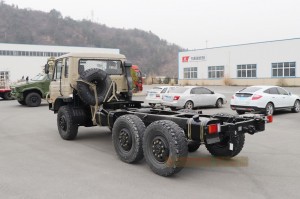

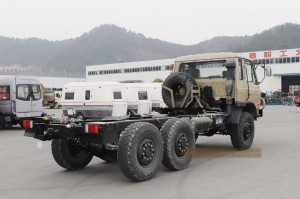

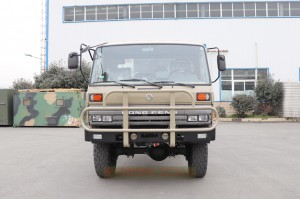

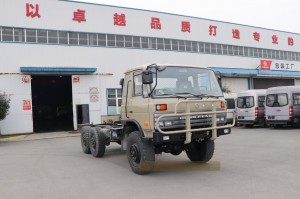

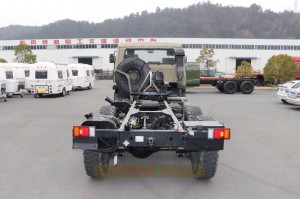

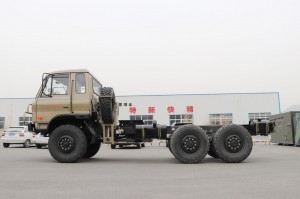

Dongfeng Six Drive EQ2102GJ Chassis

Short Description:


Product Detail

Product Tags

Product Description

Dongfeng EQ2102GJ is produced by Dongfeng after many years of perfect development. This company has been perfectly designed off-road road conditions, driving in the mud, ice and snow section. At the same time, there is also a cold start, air defense lamp, sub-tank, oil barrel, bucket, toolbox, gun, and other military additional devices, can be traged. The field of view is wide, the driving experience is comfortable, or it can also be modified into dump trucks, sprinkles, oil, rides, etc., which are highly concerned by many users at home and abroad.

Product Parameter

Basic Configuration
Drive Mode 4×4
Engine Cummins B190 33
Gearbox Mechanical Manual six speed
Transfer case High-low speed
Cab Three seats, Dongfeng 153 flat head Semi-Surface Glass
Axle Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear)
Tyre 12.5R20 (6+1)
Other Hydraulic steering power, exhaust braking
Performance Parameter
Overall Dimension(mm) 7586 × 2320 × 2740(Length×Width×Height)
Modification size(mm) 4626
Total Mass(kg) 10435 Curb Weight(kg) 5725
Max. Power(kW/rpm) 140 Max. Torque(N.m) 640
Wheelbase(mm) 3475+1250 Displacement(L) 5.9
Approach Angle (°) 35 Departure Angle (°) 34
Ground Clearance(mm) 305 Fording depth (mm) 550
Max. Speed(km/h) 85 Tank Capacity(L) 160+60

This parameter is for reference only. The margin of error is plus or minus three percentage points.
