Dongfeng Six drive flat head EQ2102G off-road Dump Truck

Short Description:


Product Detail

Product Tags

Product Description

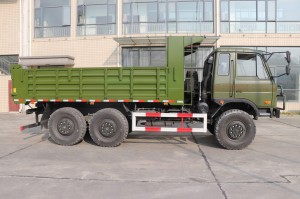

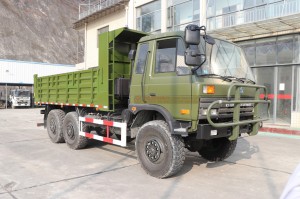

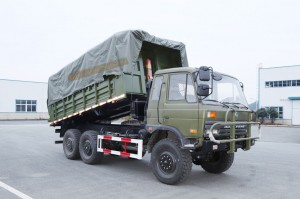

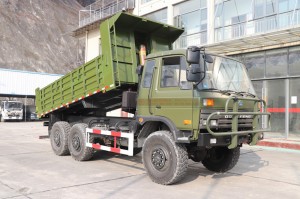

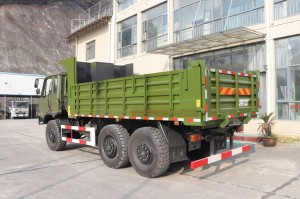

6 × 6 dump car Six wheel drive 2102G mineral special vehicle is modified by Dongfeng EQ2102G military carrier, the car not only inherited the excellent off-road performance of the original 2102 military vehicle, but also changed the container to self-unloading More suitable for loading and unloading of goods, suitable for logistics transportation, industrial and mining transportation, etc.

Product Parameter

Basic Configuration
Drive Mode 6×6
Engine Cummins B190 33
Gearbox Mechanical Manual six speed
Transfer case Part-time six wheel drive, high-low speed
Cab Dongfeng flat head one and a half row, three seats
Axle Max. Load 3.5Tons/3.5 Tons/3.5Tons (Front/ middle/Rear)
Tyre 12.5R20 (6+1)
Electrical appliance 24V circuit system
Performance Parameter
Overall Dimension(mm) 7760×2470×2740(Length×Width×Height)
Cargo Dimension(mm) 4800×2294×900(Length×Width×Height)
Total Mass(kg) 10435 Curb Weight(kg) 6725
Max. Power(kW/rpm) 140/2500 Tank Capacity(L) 160+60
Wheelbase(mm) 3475+1250 Displacement(L) 5.9
Approach Angle (°) 35 Departure Angle (°) 34
Ground Clearance(mm) ≤305 Fording depth (mm) 550
Max. Speed(km/h) 85 Max. gradeablity(%) 60

This parameter is for reference only. The margin of error is plus or minus three percentage points.
