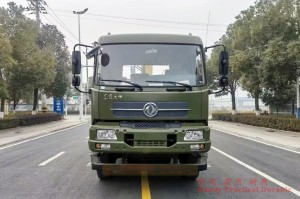

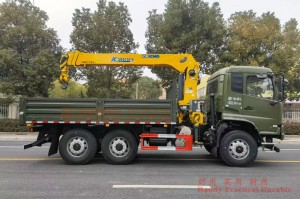

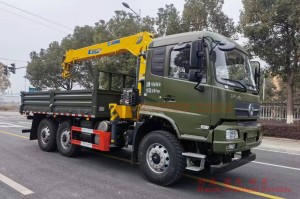

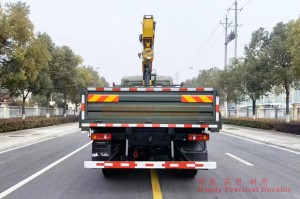

Dongfeng Six Drive Truck with 6.5 Tons crane
Product Description
Dongfeng Truck with crane
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 (6 + 1) |
| Electric Appliance |
24V circuit |

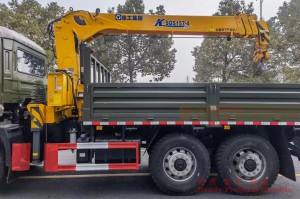

| Crane | XCMG 6.5 Tons Four straight arm crane |
| Performance Parameter | |||
| Overall Dimension(mm) | 7790×2490×3025(Length×Width×Height) | ||
| Cargo size(mm) | 4000×2294×550 | ||
| Total Mass(kg) | 12700 | Curb Weight(kg) | 9370 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3500+1235 | Displacement(L) | 5.9 |
| Approach Angle (°) | 32 | Departure Angle (°) | 31 |
| Ground Clearance(mm) | 315 | Fording depth (mm) | 520 |
| Max. Speed(km/h) | 88 | Tank Capacity(L) | 140 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
