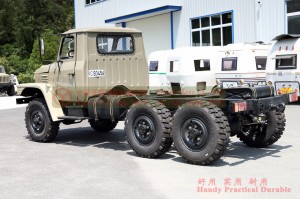

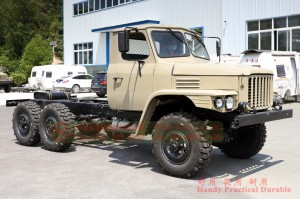

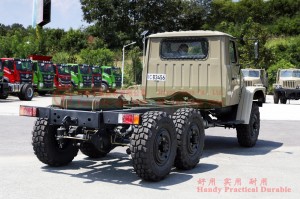

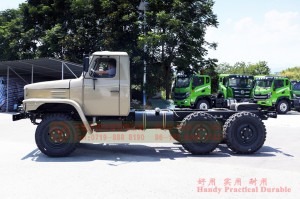

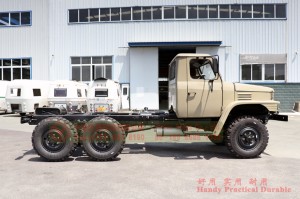

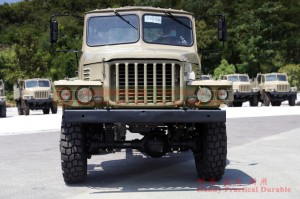

Dongfeng six wheel drive Classic EQ2082E6DJ Chassis – 6×6 Dongfeng 2.5 ton off-road vehicle conversion – standard without winch 240 long head truck chassis
Product Description
EQ2082E6D, also called EQ240 or 25Y, is a 2.5-ton six-wheel drive military long head diesel off-road vehicle developed by Dongfeng in the early days, which was once known as the “Hero Truck”, with winch, light net, protective net, anti-aircraft lights, gun racks, towing device, and double fuel tanks as its features. Because it has been tested in battle, the cross-country nature has been recognized, so it was later also civilianized.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins EQ6BT5.9 (160hp) |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

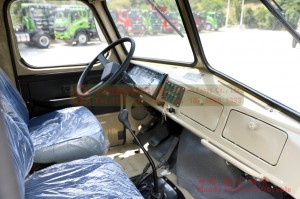

| Cab | Three seats |

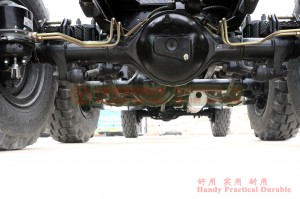

| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |

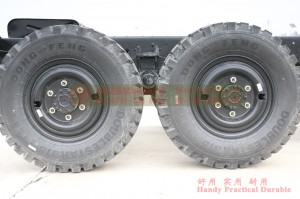

| Tyre | 11R18 (6 + 1) |
| Circuit | 24V circuit system |
| Optional | Air conditioning, winch, brake cooling tanks |
| Accessory | Buckets, oil drums, fire extinguishers, vehicle tools, tarpaulin poles |

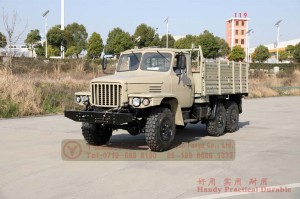

The tailgate of the cargo box can be flipped down, the rear is equipped with 2 folding ladders, and the interior can be installed with folding seat stools. It is also equipped with a removable tarpaulin pole to protect it from rain, wind and sand.
| Performance Parameter | |||
| Overall Dimension(mm) | 6340 × 2380 × 2580(Length×Width×Height) | ||
| Modification size(mm) | ≥3540 | ||
| Total Mass(kg) | 7950 | Curb Weight(kg) | 4370 |
| Max. Power(kW/rpm) | 114/2800 | Max. Torque(N.m) | 490/1700 |
| Wheelbase(mm) | 1774 | Axlebase(mm) | 3190+1100 |
| Approach Angle (°) | 45 | Departure Angle (°) | 44 |
| Minimum turning diameter(mm) | 1880 | 100km fuel consumption(L) | 24 |
| Maximum Climbing Gradient(％) | 60 | Gradient(％) | 40 |
| Max. Speed(km/h) | ≥82 | Tank Capacity(L) | 140+70 |
| Minimum Ground Clearance(mm) | 285 | Traction quality(kg) | 2500 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
