Dongfeng six-wheel drive cross-country tanker–Dongfeng six-wheel drive EQ2102 double row cross-country fuel truck–Dongfeng 6×6 classic tanker fuel truck
Product Description

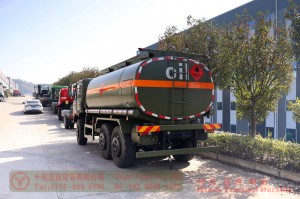

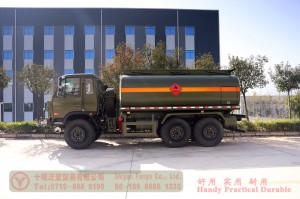

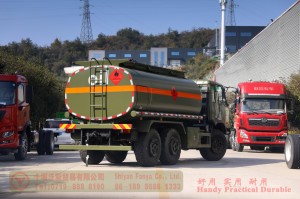

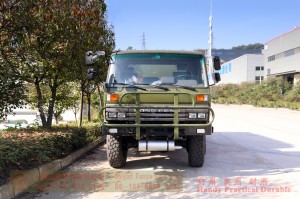

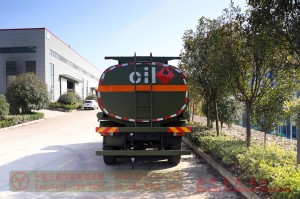

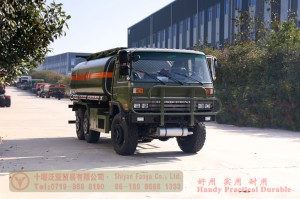

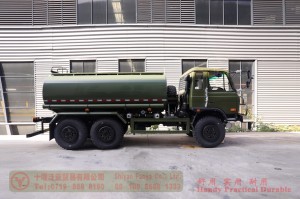

Dongfeng EQ2102G off-road carrier as a classic domestic military vehicle, performance stability is the biggest feature of this vehicle, making the car favored by people around the world. This Fuel Tank&Refuelling Truck is modified from Dongfeng EQ2102G.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | CumminsISB190 40 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats, new Dongfeng 153 cab |
| Axle | Max. Load 3.5Tons/3.5Tons (Front/Rear) |
| Tyre | 12.5R20 (4 + 1) |
| Other | Hydraulic steering power, exhaust braking |
| Performance Parameter | |||
| Overall Dimension(mm) | 7230×2460×2705(Length×Width×Height) | ||
| Tank Volume(m³) | 6 | ||
| Total Mass(kg) | 10800 | Curb Weight(kg) | 7700 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3475 + 1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 30 | Departure Angle (°) | 22 |
| Ground Clearance(mm) | 315 | Max. Gradeability(％) | 60 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 160+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
