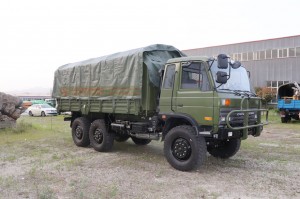

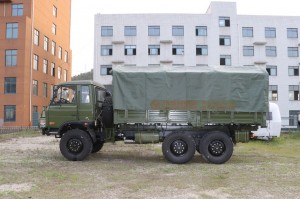

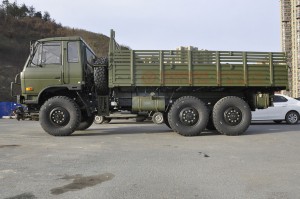

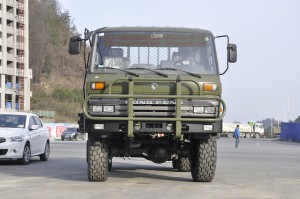

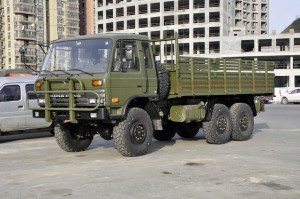

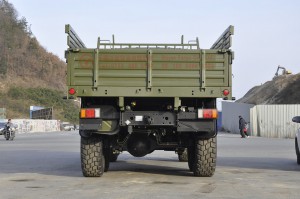

Dongfeng Six wheel drive flat head EQ2102G off-road Truck
Product Description
Dongfeng EQ2102G Six Drive Flat Head Off-road Truck has been a classic mature model of Dongfeng for many years, the car is perfect for off-road road conditions, driving in muddy, ice and snow section. At the same time, there is also a cold start, air defense lamp, sub-tank, machine barrel, bucket, tarpaulin, tool box, gun, etc., can be traged by the artillery. The field of view is wide, the driving experience is comfortable, or it can also be modified into dump trucks, sprinkles, oil, rides, etc., which are highly concerned by many users at home and abroad.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | Part-time six wheel drive, high-low speed |
| Cab | Dongfeng flat head single row, three seats |
| Axle | Max. Load 3.5Tons/3.5 Tons/3.5Tons (Front/ middle/Rear) |
| Tyre | 12.5R20 (6+1) |
| Other |
|
| Performance Parameter | |||
| Overall Dimension(mm) | 7760×2470×2740(Length×Width×Height) | ||
| Cargo Dimension(mm) | 4800×2294×900 | ||
| Total Mass(kg) | 10435 | Curb Weight(kg) | 6725 |
| Max. Power(kW/rpm) | 140/2500 | Tank Capacity(L) | 160+60 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | ≤305 | Fording depth (mm) | 550 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
