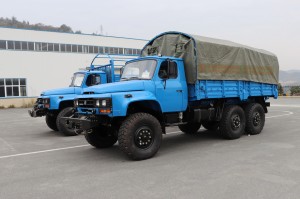

Dongfeng Six wheel drive long head EQ2100 off-road truck
Product Description
Dongfeng The 2100E6D model is to adapt to the development needs of the forces, inheriting the total assembly and structure of the 2,000E model, using Dongfeng Cummins B190 33 diesel engine development and development of off-road vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |

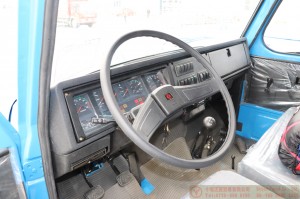

| Cab | Three seats, long head Metal welding integral bridge shell |
| Axle | Max. Load 3.5Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.00R20 (6+1) |
| Electrical applicance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7400 × 2480 × 3200(Length×Width×Height) | ||

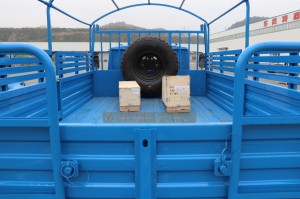

| Cargo size(mm) | 4200 × 2290 × 990 | ||
| Total Mass(kg) | 9000 | Curb Weight(kg) | 6090 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3400+1200 | Displacement(L) | 5.9 |
| Approach Angle (°) | 36 | Departure Angle (°) | 43 |
| Ground Clearance(mm) | 320 | Min. turning radius(m) | 8.3 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 160+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
