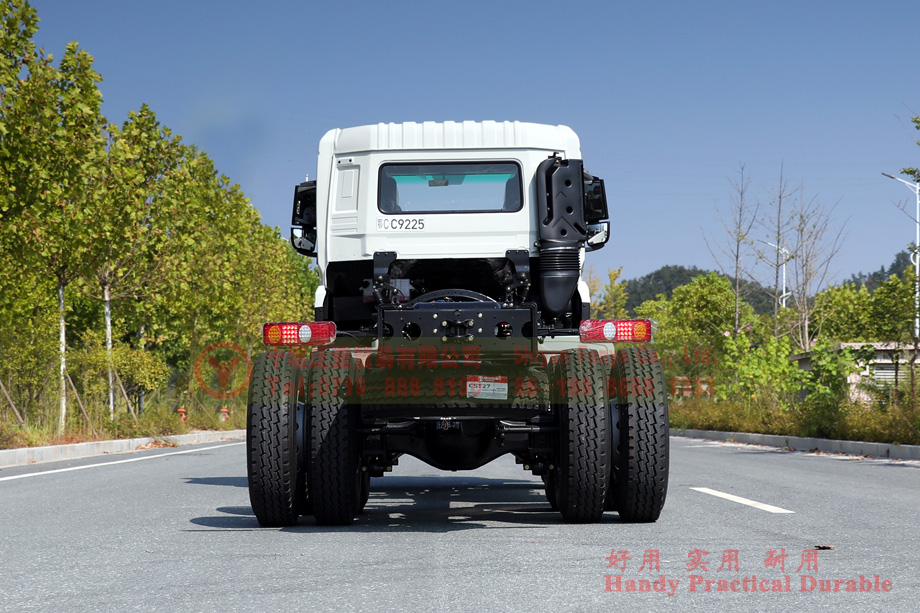

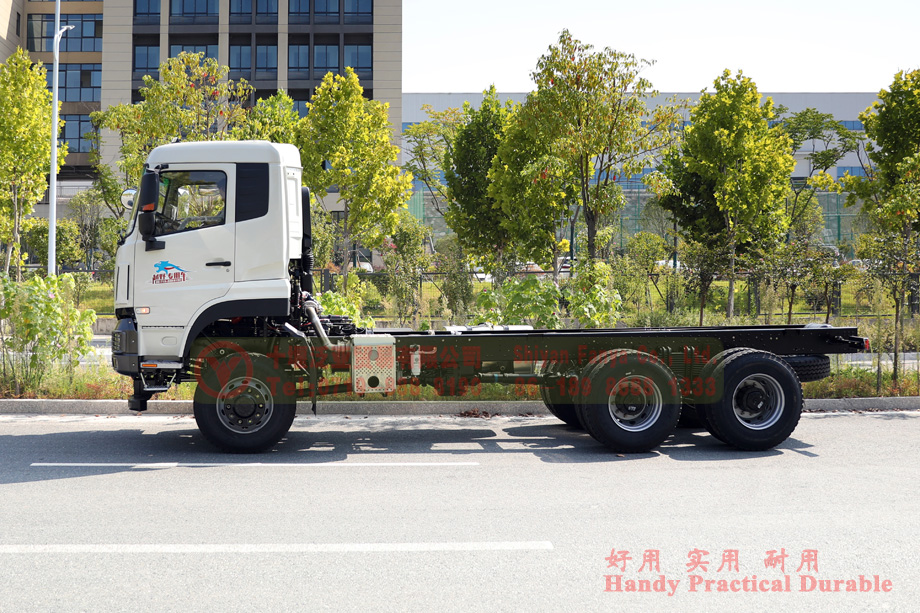

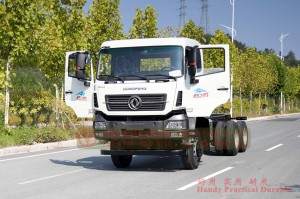

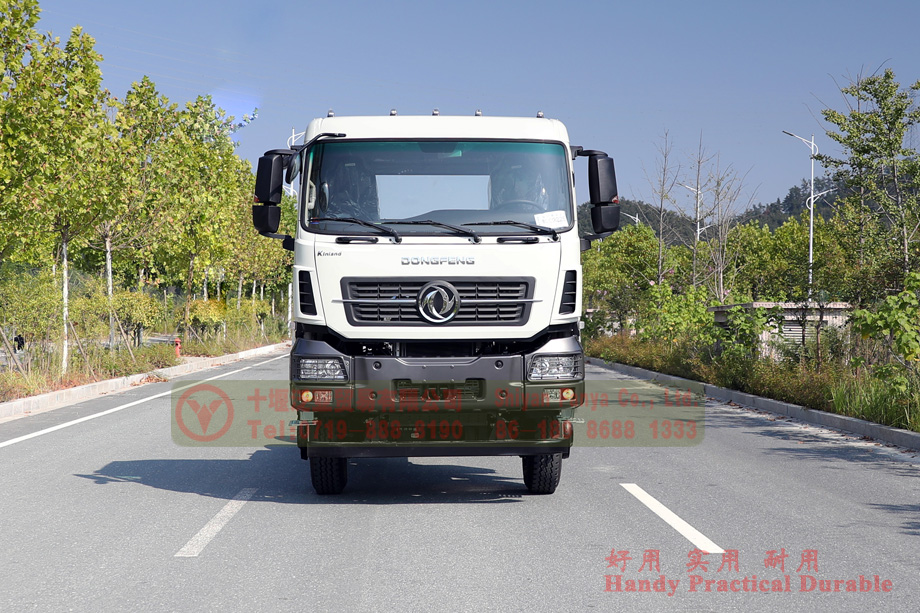

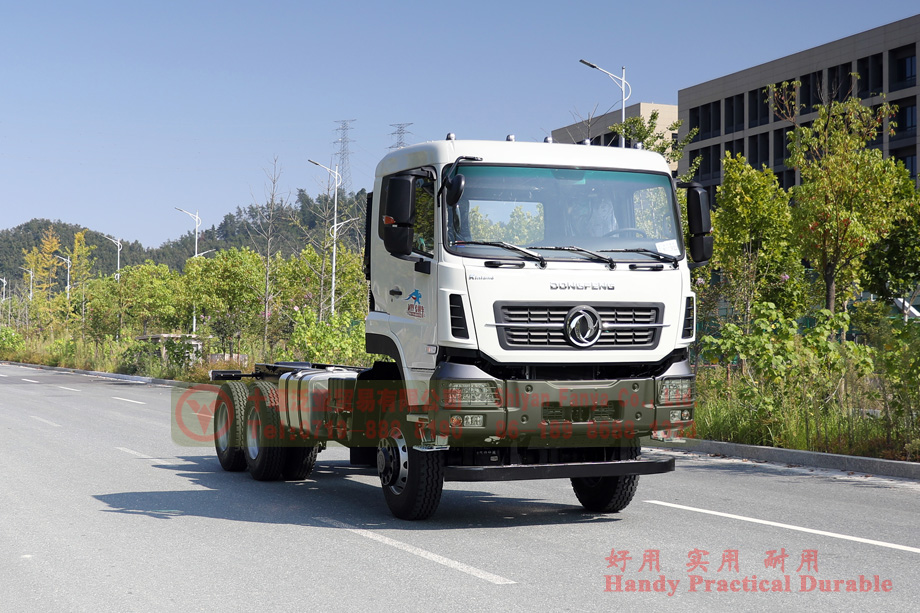

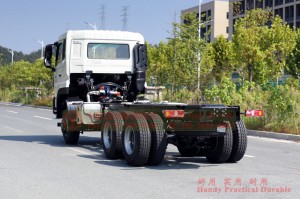

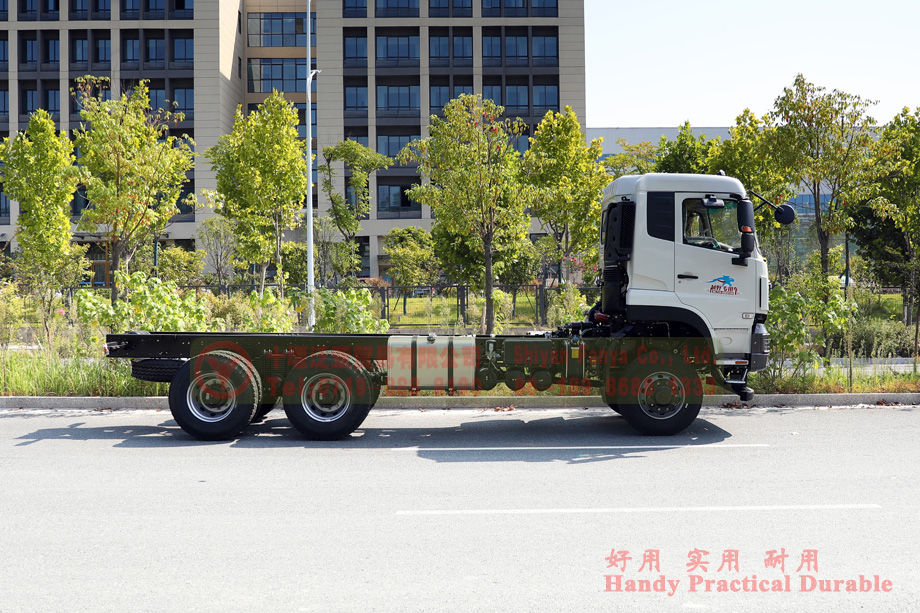

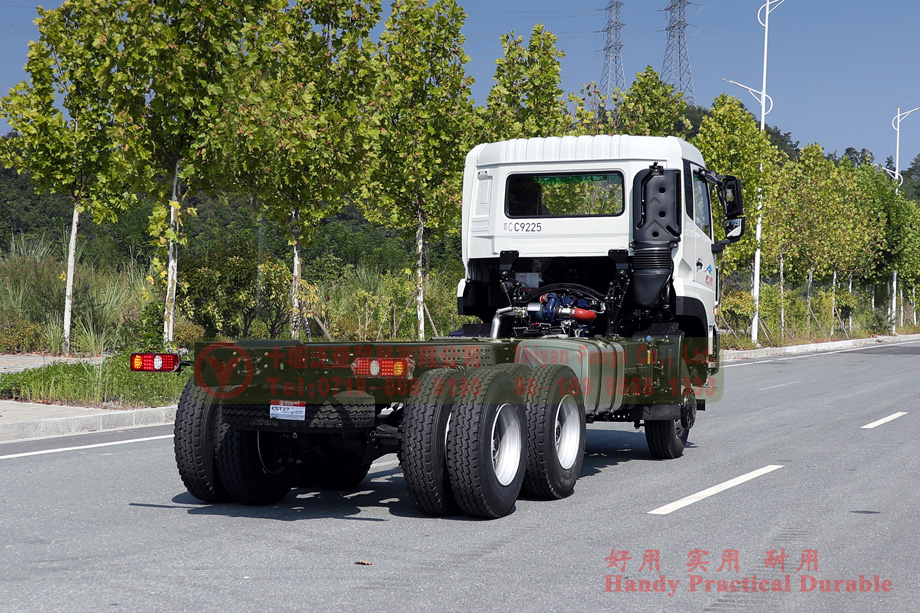

6*6 Dongfeng three axle truck chassis, 350 hp engine, double-deck frame, the maximum can do 25 tons, large conversion space, suitable for conversion into dump trucks, vans, tank trucks and other heavy trucks.

Product Parameter

Basic Configuration
Drive Mode 6×6
Engine WP10.350E53
Gearbox Mechanical Manual ten speed
Transfer case High-low speed

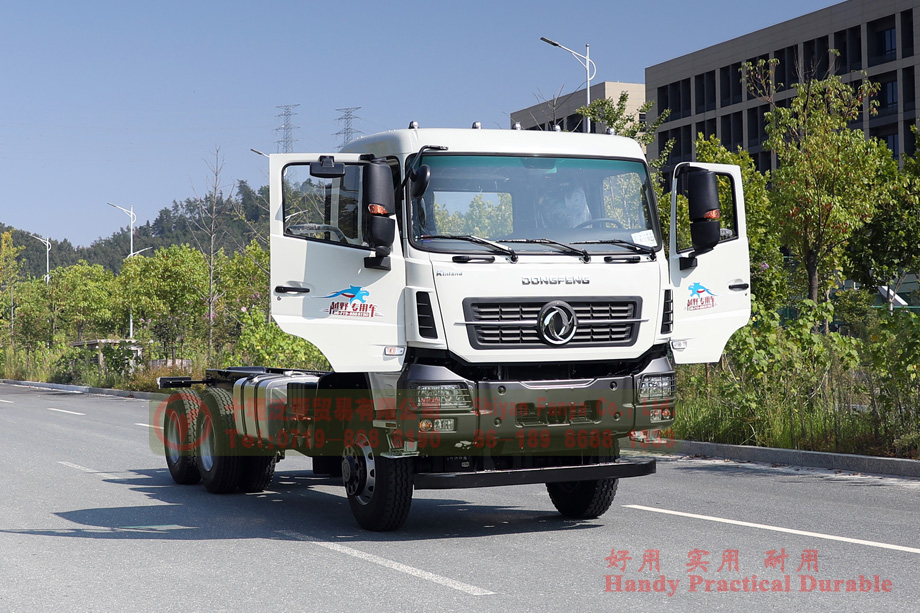

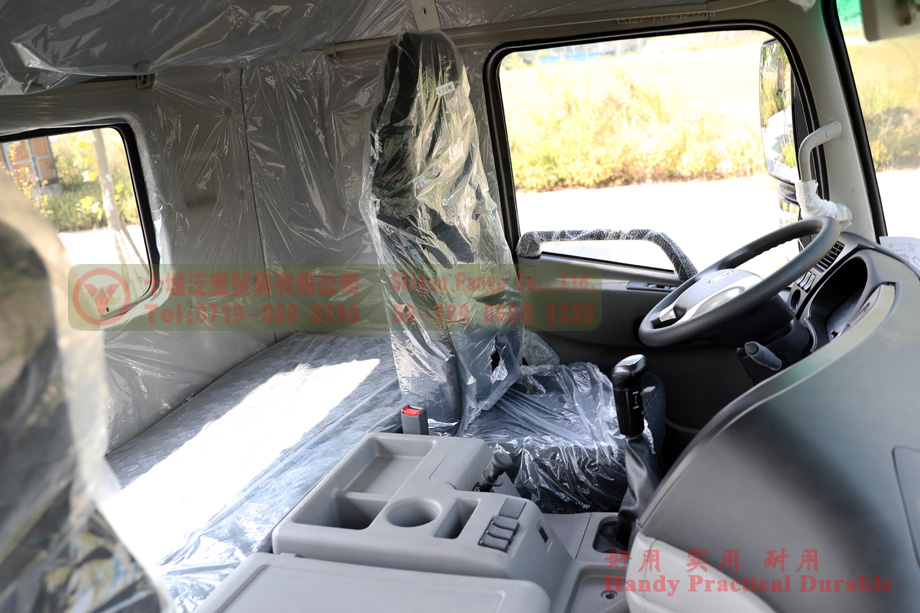

Cab Dongfeng flat head one and a half rows
Axle Max. Load 7Tons/13Tons/13Tons (Front/Middle/Rear)

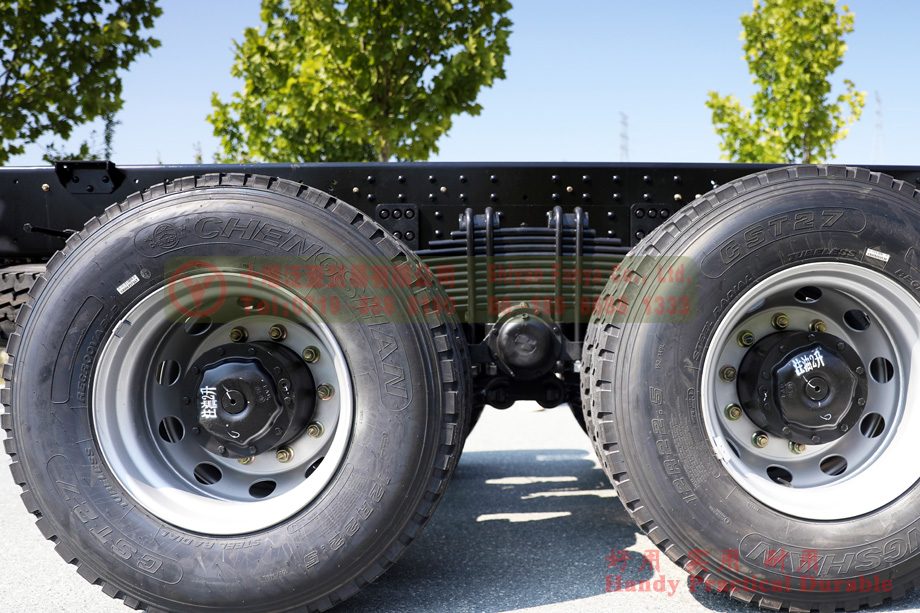

Suspension Steel plate spring 9/10 pieces
Tyre 12R22.5 (10 + 1)
Performance Parameter
Overall Dimension(mm) 8508 × 2520 × 3300(Length×Width×Height)
Modification size(mm) ≥5900
Total Mass(kg) 25000 Curb Weight(kg) –
Max. Power(kW/rpm) 257 Max. Torque(N.m) 640
Wheelbase(mm) 4200 Displacement(L) 9.726
Approach Angle (°) 18 Departure Angle (°) 25
Front Suspension(mm) 1383 Rear Suspension(mm) 1585
Ground Clearance(mm) 700 Fording depth (mm) 530
The upper plane of the rear end of the frame is off the ground(mm) 1278 Frame 860*300mm, thickness 8+8
Max. Speed(km/h) 90 Tank Capacity(L) 400

This parameter is for reference only. The margin of error is plus or minus three percentage points.
