Product Description

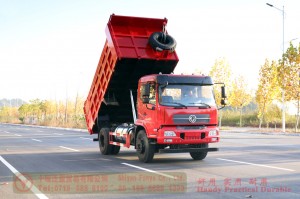

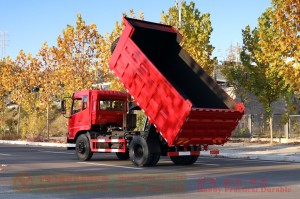

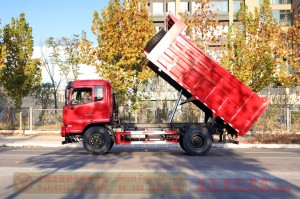

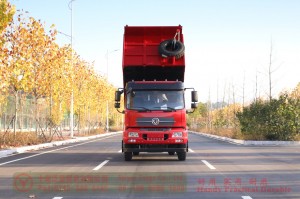

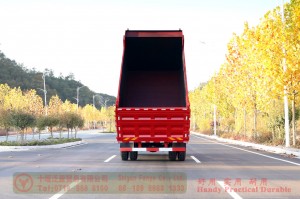

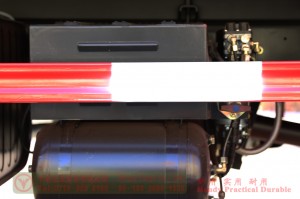

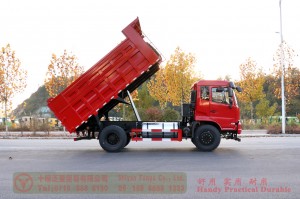

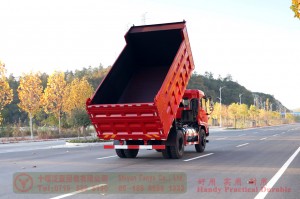

4×2 Dongfeng dump truck, mainly used for engineering construction, road construction, mountain reclamation, mining and other areas of earth, sand, gravel, ore and other goods transport use, up to 12 tons of cargo. The cargo box is made of high-strength steel plate, various tilting methods, and can be equipped with brake cooling water tank.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×2 |
| Engine | Yuchai YC6J210-33 |
| Gearbox | Manual ten speed |
| Transfer case | High-low speed |

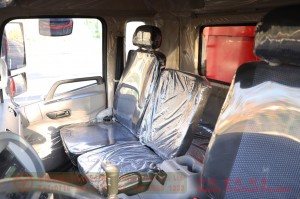

| Cab | Three seats, Dongfeng Tianjin flat head |
| Axle | Max. Load5Tons/13Tons (Front/Rear) |

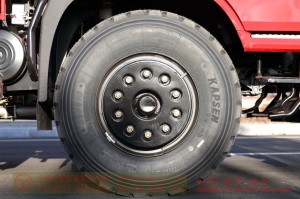

| Tyre | 11.00R20 (6+1) |
| Electrical Appliance | 24V circuit system |
| Other | The roof can choose rainclub, optional brake cooling water tank |
| Performance Parameter | |||
| Overall Dimension(mm) | 7010 × 2600 × 3060(Length×Width×Height) | ||
| Chassis Dimension(mm) | 6330 × 2600 × 2870(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 9090 |
| Max. Power(kW/rpm) | 156 | Axlebase(mm) | 1990/1910 |
| Wheelbase(mm) | 3800 | Displacement(L) | 6.494 |
| Approach Angle (°) | 24 | Departure Angle (°) | 19 |
| Front Suspension(mm) | 1400 | Rear Suspension(mm) | 1810 |
| Ground Clearance(mm) | 320 | Fording depth (mm) | 450 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 280 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
