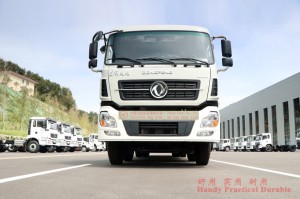

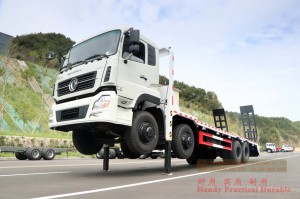

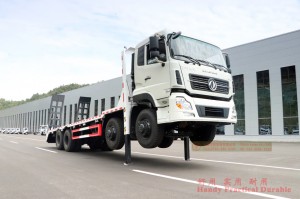

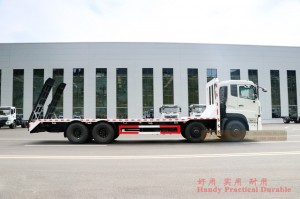

Dongfeng 8X4 Platform Vehicle
Product Description

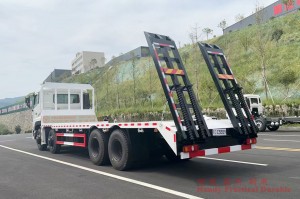

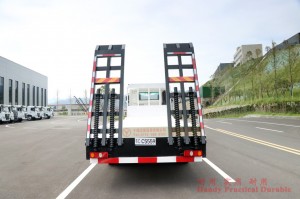

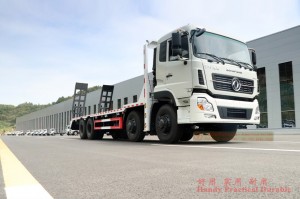

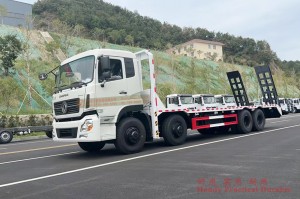

Dongfeng 8X4 Platform Vehicle. This vehicle is customized for our customer. The length of the vehicle model reaches 11 meters. The vehicle can load 17 tons, and the back of the tablet is equipped with a foldable tail plate for easy loading and unloading.
Product Parameter
| Basic Configuration | |
| Drive Mode | 8×4 |
| Engine | YC6L350-50 |
| Gearbox | FAST nine speed |
| Cab | Three seats, Dongfeng Tianlong flat head, one and a half row cab |
| Axle | Max. Load 5+5Tons/10+10Tons (Front/Rear) |
| Tyre | 11.00R20 (12 + 1) |
| Electrical Appliancce |
24V Circuit System |
| Performance Parameter | |||
| Overall Dimension(mm) | 11740 × 2450 × 3300(Length×Width×Height) | ||
| Platform Dimension(mm) | 9580 × 2540 × 3300(Length×Width×Height) | ||
| Total Mass(kg) | 30000 | Curb Weight(kg) | 13000 |
| Max. Power(kW/rpm) | 257 | Displacement(L) | 8.4 |
| Wheelbase(mm) | 1950+4500+1300 |
Obstacle Height(mm) | 420 |
| Approach Angle (°) | 16 | Departure Angle (°) | 14 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 400 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 420 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
