Product Description

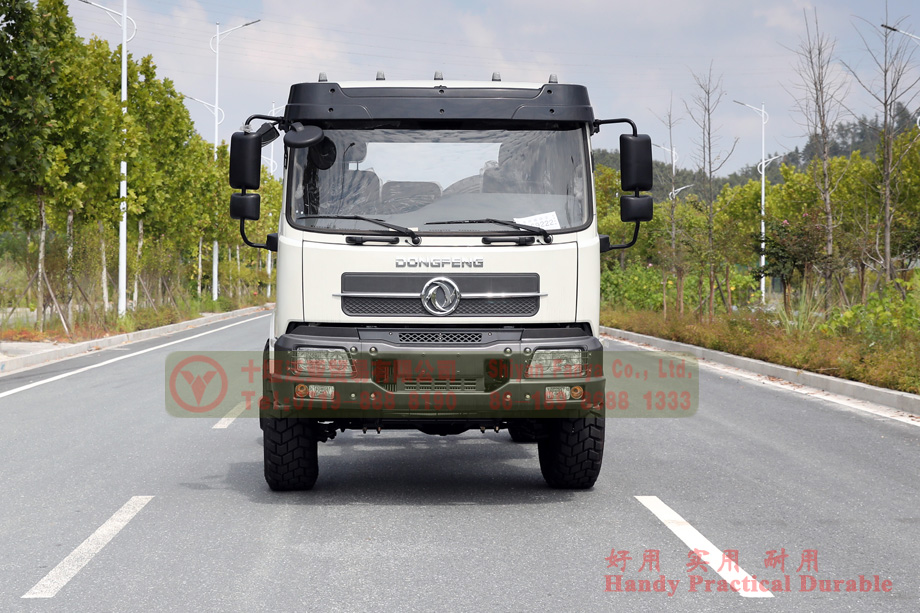

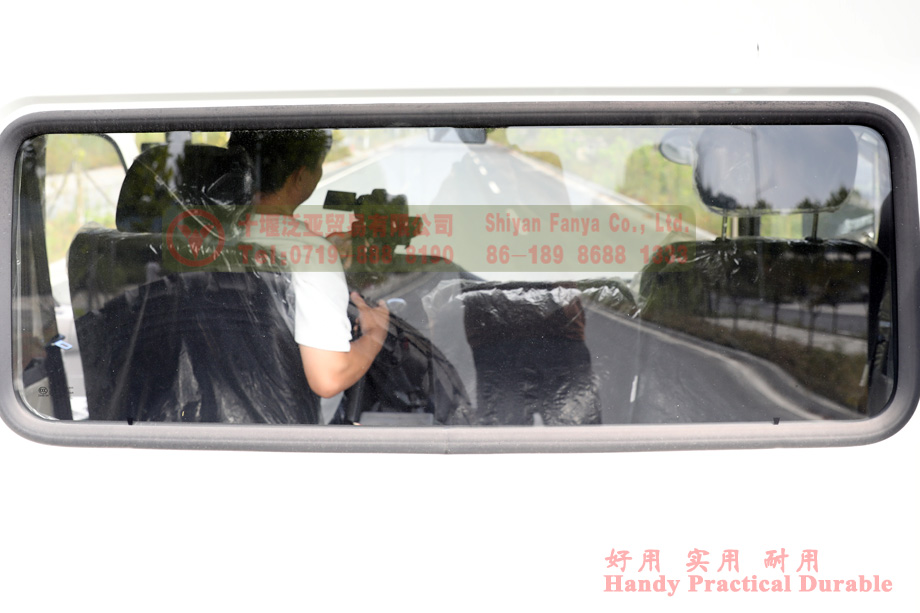

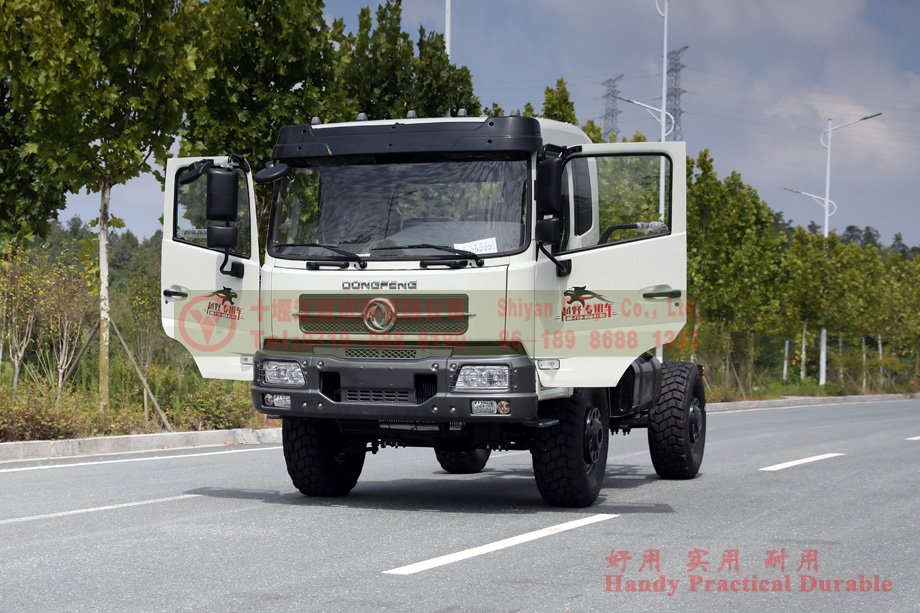

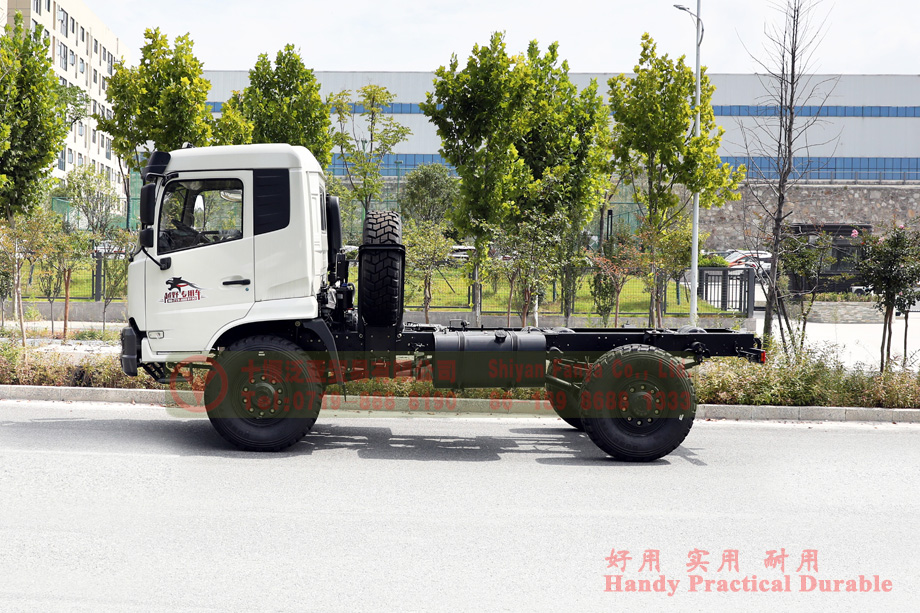

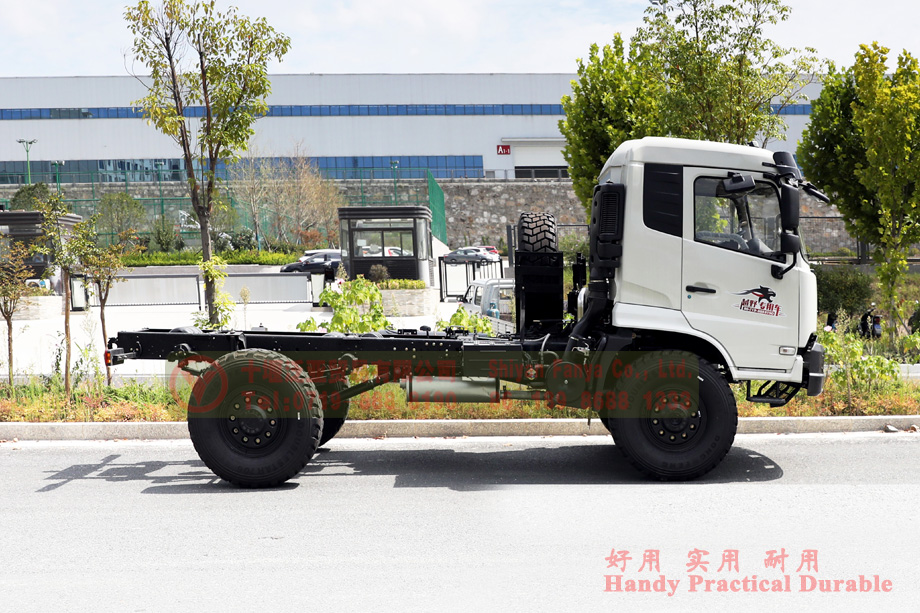

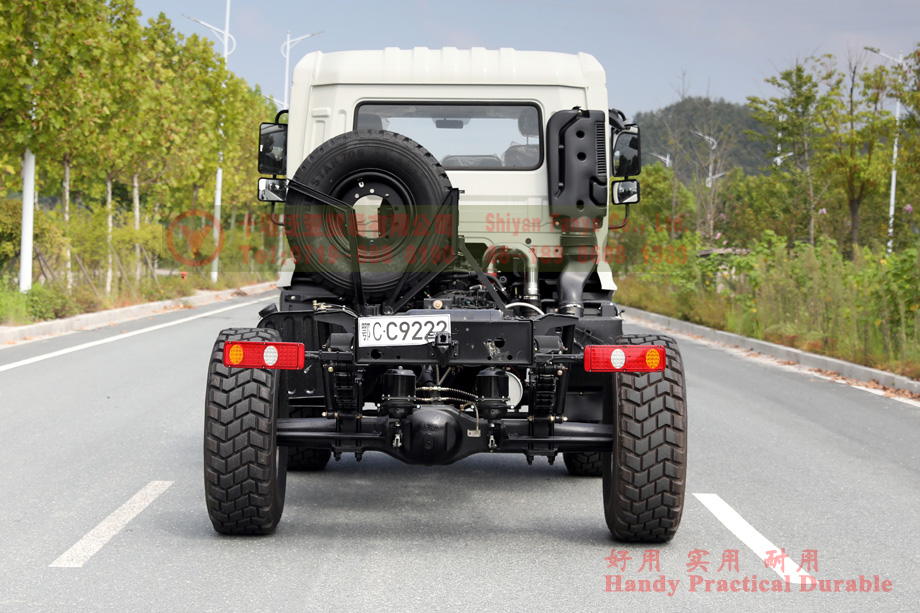

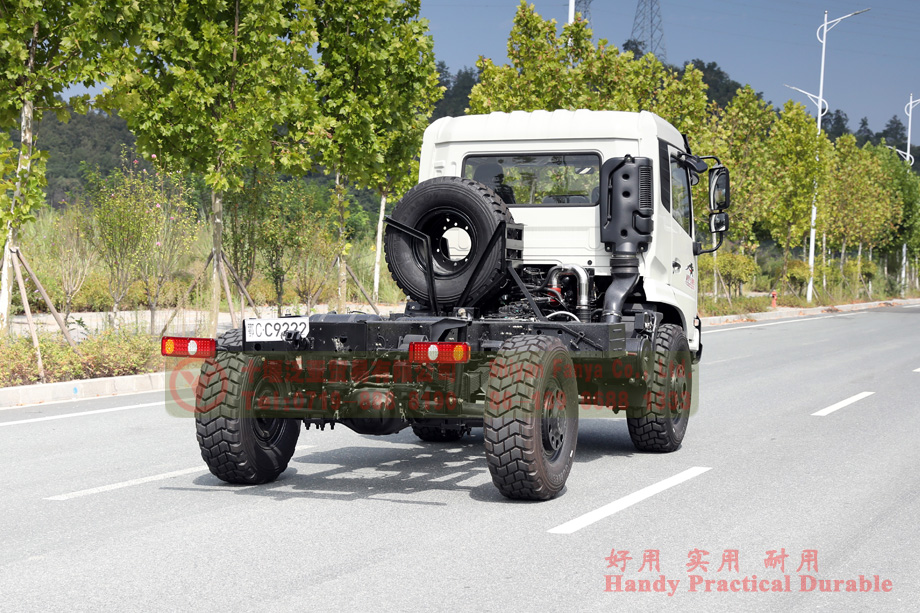

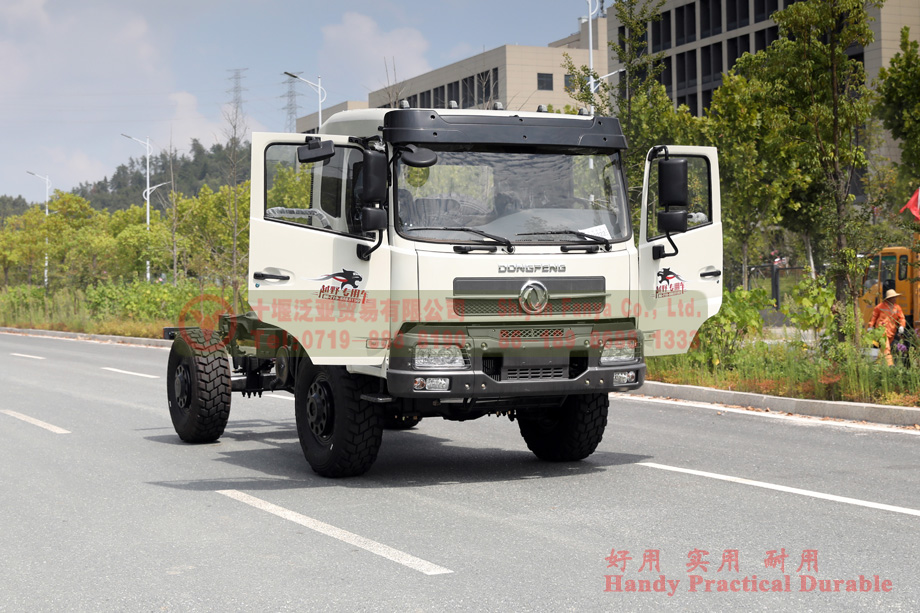

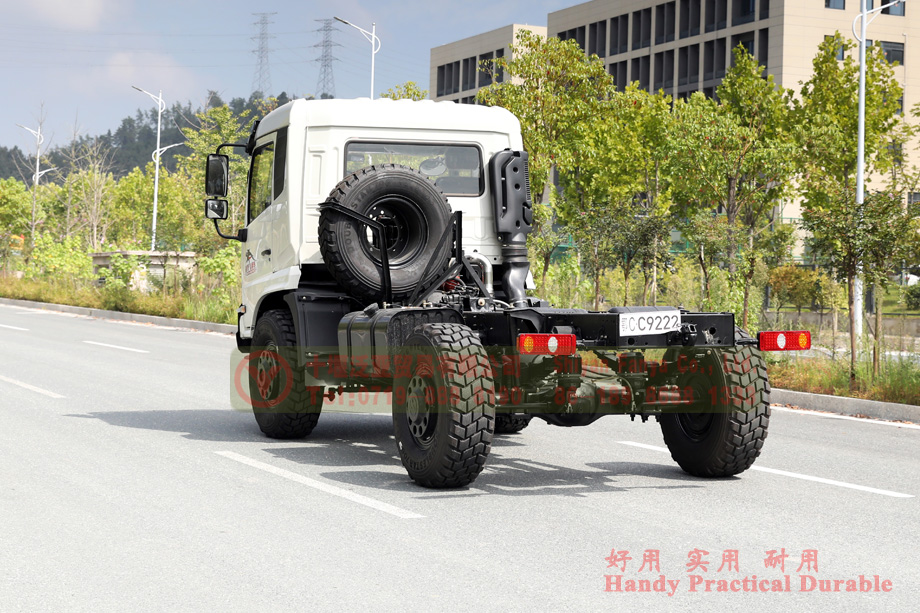

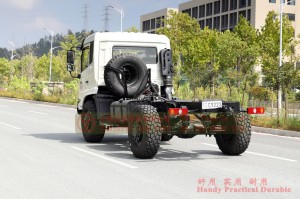

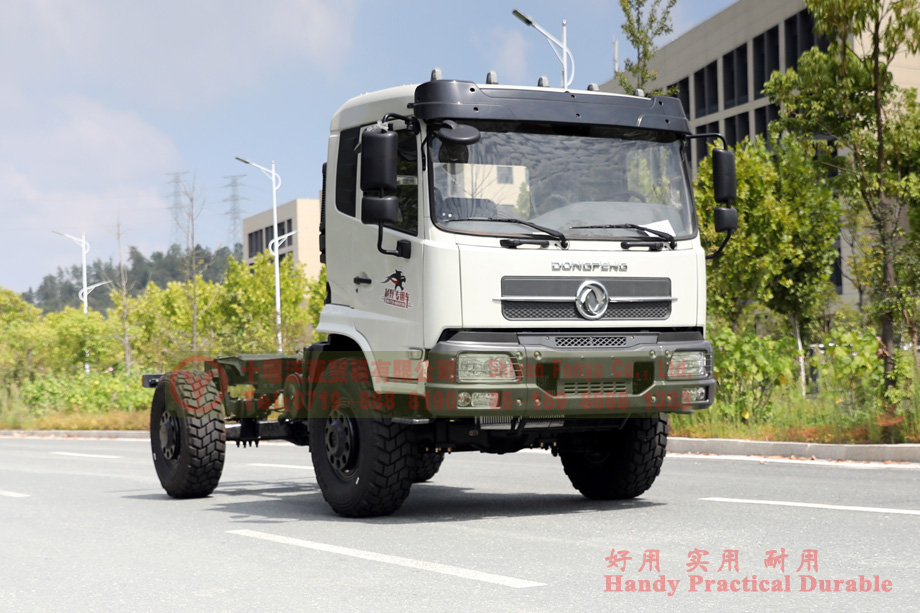

Four-wheel drive off-road vehicle chassis, is our company according to customer requirements to build a dump truck chassis, can also be converted into ordinary cargo trucks, vans, tank trucks, etc.. It adopts Dongfeng Cummins 210 hp engine, 3600mm wheelbase, 3500mm modification space at the back, cab adopts Dongfeng flat head one and a half row cab, with sleeper at the back, high comfort.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B210 33 |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

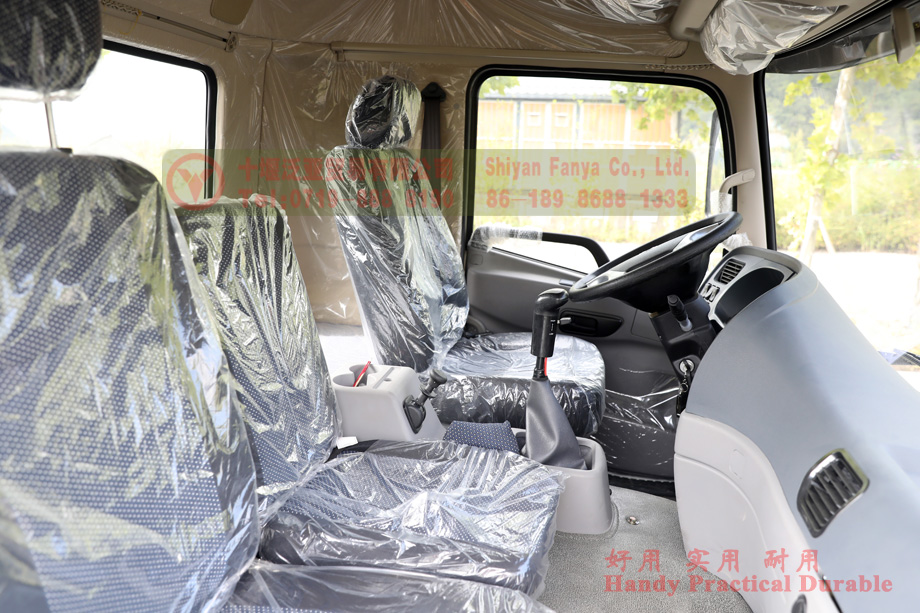

| Cab | Three seats |
| Axle | Max. Load 7Tons/13Tons (Front/Rear) |
| Frame | 860*232mm |

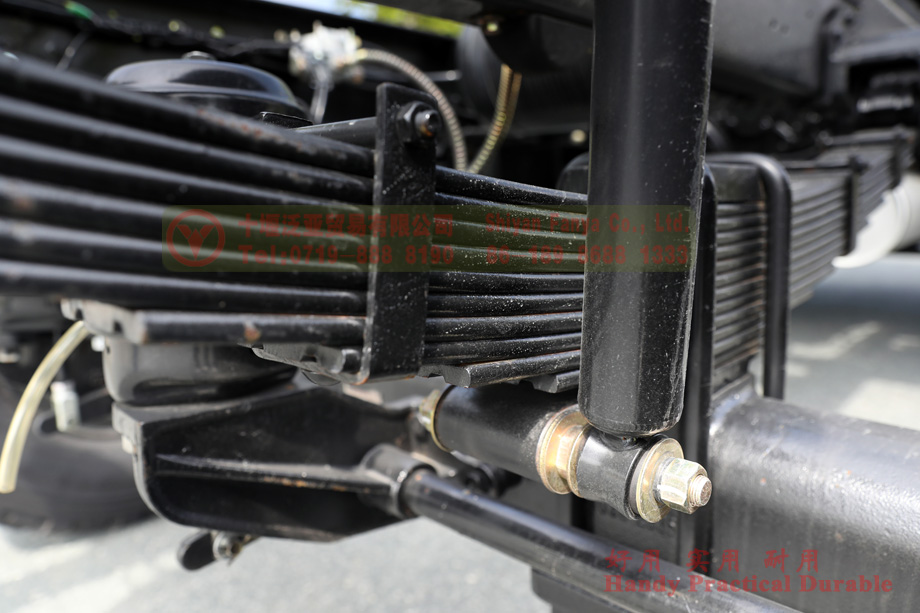

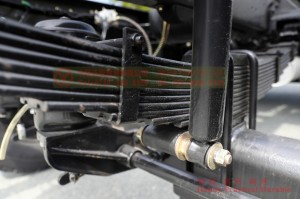

| Suspension | Steel plate spring 10/12 pieces |
| Tyre | 12.5R20 (4 + 1) |
| The upper plane of the rear end of the frame is off the ground(mm) | 1230 |
| Performance Parameter | |||
| Overall Dimension(mm) | 6290 × 2515 × 3010(Length×Width×Height) | ||
| Modification size(mm) | ≥3515 | ||
| Total Mass(kg) | 18000 | Front Suspension（mm） | 1330 |
| Max. Power(kW/rpm) | 155 | Rear Suspension（mm） | 1360 |
| Wheelbase(mm) | 2030/2150 | Displacement(L) | 5.88 |
| Approach Angle (°) | 28 | Departure Angle (°) | 36 |
| Ground Clearance(mm) | 360 | Fording depth (mm) | 1065 |
| Max. Speed(km/h) | 85 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
