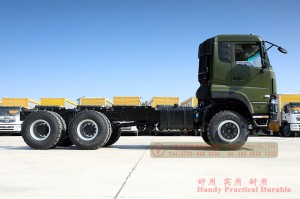

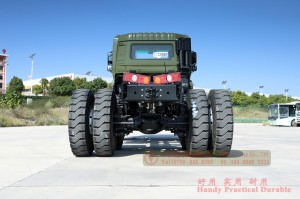

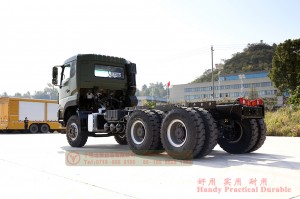

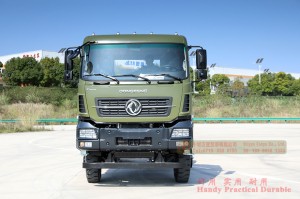

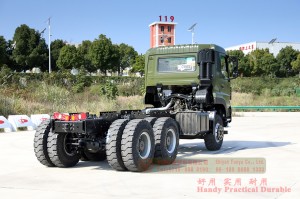

Dongfeng 6×4 Special ORV Chassis Off-road Chassis One Row and a Half Flat Head
Product Description
Dongfeng 6×4 Off-road Special vehicle chassis is perfect for heavy duty off-road work.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×4 |
| Engine | Yuchai YC6MK375-33 |
| Gearbox | Manual twelve speed |

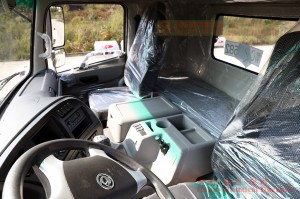

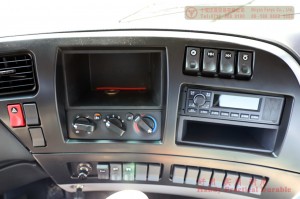

| Cab | 1.5 row |

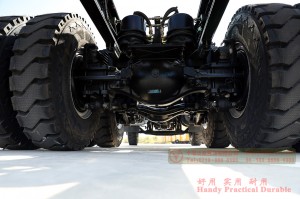

| Axle | Max. Load 7Tons/16Tons (Front/Rear) |
| Tyre | 12.00R20 (10 + 1) |
| Leaf spring | 10/13 |
| Frame(mm) | 860×300×195 |
| Performance Parameter | |||
| Overall Dimension(mm) | 7510 × 2400 × 3360(Length×Width×Height) | ||
| Modification size(mm) | 5000 | ||
| Total Mass(kg) | 39000 | Cylinder | 6 |
| Max. Power(kW/rpm) | 276 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 2850+1350 | Displacement(L) | 10338 |
| Front Axle(mm) | 1370 | Rear Axle(mm) | 930 |
| Wheel Track(mm) | 2100/1892/1892 | Vertical Obstacle Clearance(mm) | 500 |
| Approach Angle (°) | 17.8 | Departure Angle (°) | 42.6 |
| Ground Clearance(mm) | 365 | Fording depth (mm) | 560 |
| Member | 3 | Tank Capacity(L) | 380 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
