DongfengBig 4×4 Mac Mine Off-road Special Vehicle
Product Description

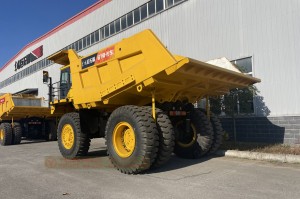

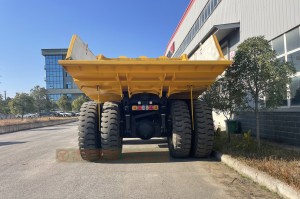

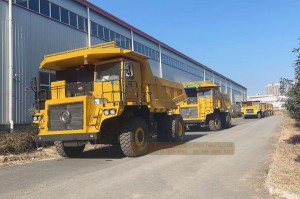

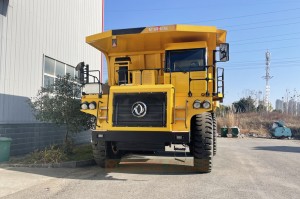

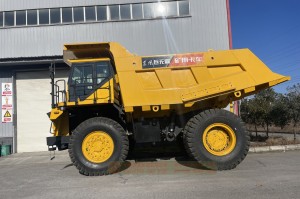

Dongfeng DF100 Mine Special Off-road Dump Truck. This veehicle can load about 70 Tons. It has been widely used not only in many huge iron ore mines in but also in Asia’s largest lead and zinc mine. In Wuhai mining area, this vehicle overcomes the impact and torsion resistance of large rocks caused by blasting defects. The car has withstood the test of dust and sand in Xinjiang. This vehicle has been highly approved by many customers all over the world.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Diesel engine |
| Gearbox | Manual |
| Transfer case | High-low speed |
| Cab | One seat |
| Front and rear bridge suspension structure | Independent suspension, alloy cast steel |
| Tyre | Industrial and mining special tire |
| Electrical Appliance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 8050 × 4480 × 4300(Length×Width×Height) | ||
| Modification size(mm) | 4700 | ||
| Max. Volume(m³) | 40 | Rated Load Weight(kg) | 70000 |
| Max. Power(kW/rpm) | 405/410 | Max. Gadeability(%) | 26 |
| Wheelbase(mm) | 4250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 44 | Departure Angle (°) | 45 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
