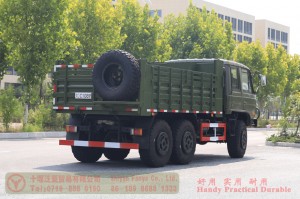

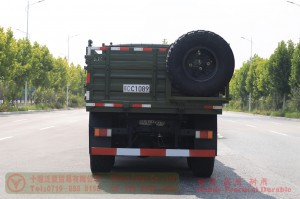

EQ2102 Dongfeng six-wheel-drive double-row dump truck-3.5-ton flathead diesel off-road vehicle–Dongfeng 6*6 troop-carrying vehicle for civilian exports
Product Description
Dongfeng EQ2102 three and a half tons of double-row flathead cross-country personnel carrier type EQ2102G upgraded models, the main difference lies in the cab upgraded to a double-row style, the number of members in the cab up to 5 people, the size of the cargo box is correspondingly short.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B210 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High and Low Speed |
| Cab | Dongfeng 153 flathead double row cab |
| Axle | Max. Load 3.6Tons/3.6Tons/3.6Tons (Front/Middle/Rear) |
| Suspension | Steel plate spring 10/12 pieces |

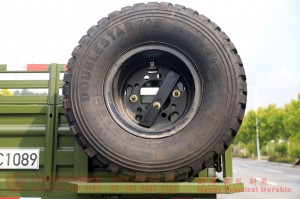

| Tyre | 12.5R20 (6 + 1) |
| Optional | 24V Circuit System, Single Wire, Negative Hitch |
| Performance Parameter | |||
| Overall Dimension(mm) | 7925 × 2480 × 2740(Length×Width×Height) | ||
| Cargobox Dimension(mm) | 4600 × 2200× 600+300(Length×Width×Height) | ||
| Total Mass(kg) | 10850 | Curb Weight(kg) | 7830 |
| Max. Power(kW/rpm) | 155 | Axlebase(mm) | 1876 |
| Wheelbase(mm) | 3475+1250 | Displacement(L) | 5.88 |
| Approach Angle (°) | 35 | Departure Angle (°) | 21 |
| Ground Clearance(mm) | 305 | Fording Depth(mm) | 480 |
| Max. Speed(km/h) | ≥85 | Tank Capacity(L) | 300 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
