EQ240 Dongfeng Classic Truck Chassis–Dongfeng Blue Tip Buggy Chassis–6×6 Export-type Dongfeng Long Head Chassis

Short Description:

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

Product Tags

Product Description

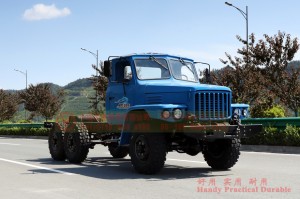

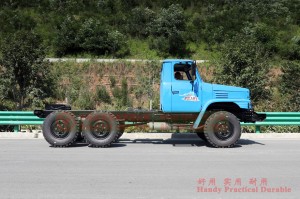

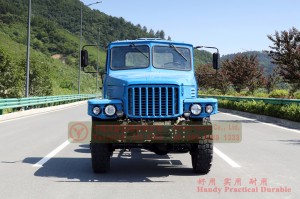

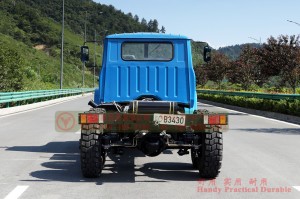

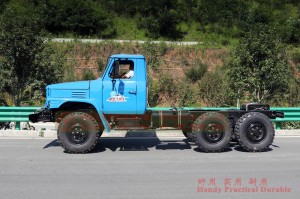

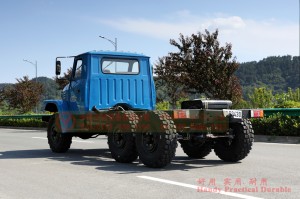

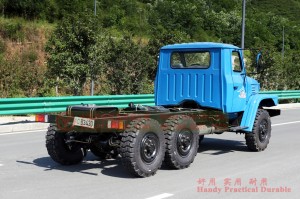

EQ240 Dongfeng classic truck chassis adopts 6×6 time-sharing drive, Dongfeng Peugeot’s Dongfeng blue color, long head body (cab) with higher safety coefficient and less noise. Vehicles installed 5 tons of front mechanical winch, can come to the rescue to get out of trouble. Each axle is connected by a drive shaft, which makes the vehicle full of power.

Product Parameter

Basic Configuration
Drive Mode	6×6
Engine	Cummins B170 33
Gearbox	Mechanical Manual five speed
Transfer case	High-low speed

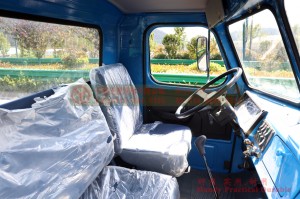

Cab	Two seats
Axle	Max. Load 3.6Tons/3.6Tons (Front/Middle/Rear)

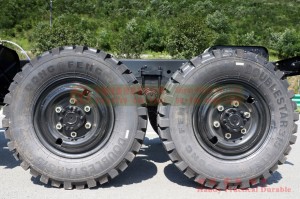

Tyre	11R20 (6 + 1)
Circuit	24V circuit system
Suspension	Steel plate spring 10/12 pieces
Other	With towing hook, electrical connector, air brake connector, cold start, runaway light, winch
Optional	Backup camera, wading heightener, secondary fuel tank

Performance Parameter
Chassis Dimension(mm)	6260 × 2580 × 2930(Length×Width×Height)
Modification size(mm)	≥3750
Total Mass(kg)	7800	Curb Weight(kg)	4320
Max. Power(kW/rpm)	125	Axlebase(mm)	3190+1100
Wheelbase(mm)	1774	Upper frame plane off the ground(mm)	980
Approach Angle (°)	36	Departure Angle (°)	46
Ground Clearance(mm)	285	Fording depth (mm)	550
Max. Speed(km/h)	87	Tank Capacity(L)	160
