EQ240 four-ton civilian off-road truck chassis–Dongfeng longhead diesel truck chassis–EQ2082 pointed Y25 off-road troop-carrying vehicle chassis
Product Description

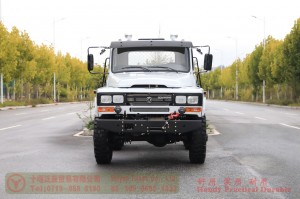

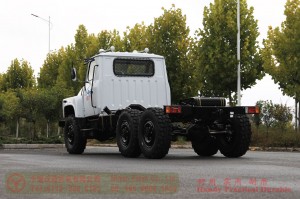

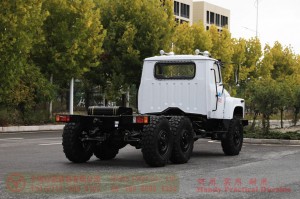

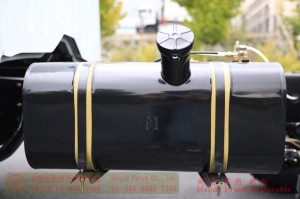

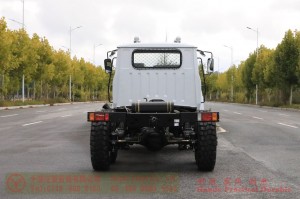

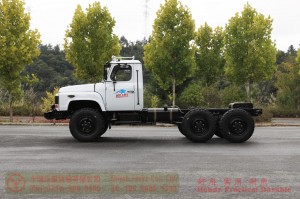

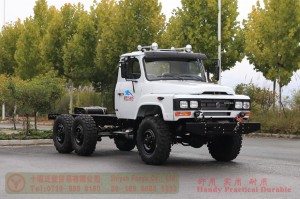

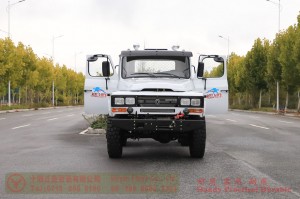

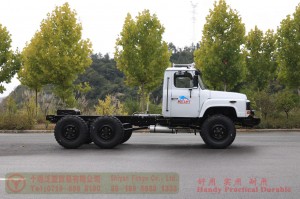

EQ2082, also called EQ240 or 25Y, is a 2.5-ton six-wheel-drive military long head diesel off-road vehicle chassis developed by Dongfeng in the early days, which was once called “hero vehicle”, with winch, light net, protective net, anti-aircraft lights, gun rack, towing device, and double tanks as its features. Because it has been tested in battle, the cross-country nature has been recognized, so it was later also civilianized.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 2.5Tons/2.5Tons/2.5Tons (Front/Middle/Rear) |

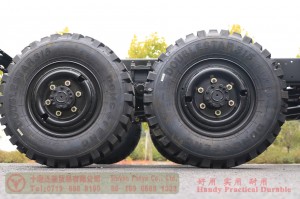

| Tyre | 11R18 (6 + 1) |
| Optional | Hydraulic clutch power, hydraulic steering power, exhaust brake |
| Other | Cab rear window with protective mesh, 6×6 all-wheel drive, patented design, designed for severe road conditions, optional front winch, traction capacity of 44,100 |
| Performance Parameter | |||
| Overall Dimension(mm) | 6290 × 2400 × 2385(Length×Width×Height) | ||
| Modification size(mm) | ≥3440 | ||
| Total Mass(kg) | 7800 | Curb Weight(kg) | 4090 |
| Max. Power(kW/rpm) | 125 | Axlebase(mm) | 1774 |
| Wheelbase(mm) | 3190+1100 | Maximum Climbing Degree(％) | 60 |
| Approach Angle (°) | 45 | Departure Angle (°) | 44 |
| Ground Clearance(mm) | 285 | Fording depth (mm) | 1100 |
| Max. Speed(km/h) | 87 | Tank Capacity(L) | 160+60 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
