Flathead one and a half row 240 hp Dump Truck–Dongfeng 4*4 rear single tire off-road Truck–Twin-axle off-road truck conversion manufacturers
Product Description

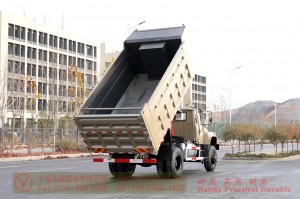

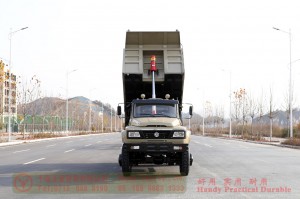

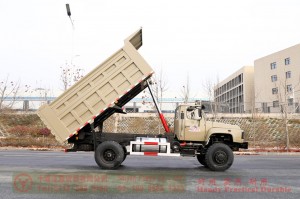

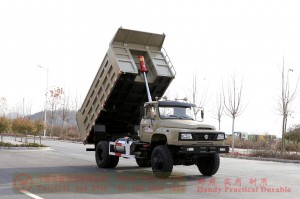

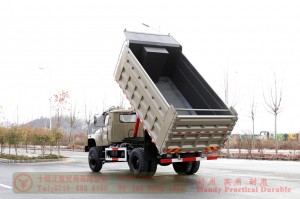

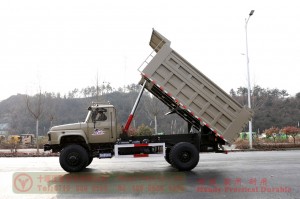

Dump trucks in civil engineering often work jointly with excavators, loaders, belt conveyors and other engineering machinery, constituting a loading, transporting and unloading production line for loading and unloading and transportation of earth, sand and gravel, and bulk materials. As the loading car can automatically tilt a certain angle to unload materials, greatly save unloading time and labor, shorten the transportation cycle, improve production efficiency, reduce transportation costs, is commonly used in the transportation of special vehicles.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | YC6A240-33 |
| Gearbox | Mechanical Manual Eight speed |
| Transmission | High and low speed |

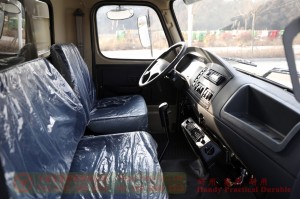

| Cab | Pointed Single Row |
| Axle | Max. Load 7Tons/13Tons (Front/Rear) |

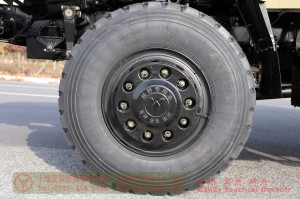

| Tyre | 11.00R20(6 + 1) |
| Frame | 860*280mm,Double layer |
| Performance Parameter | |||
| Overall Dimension(mm) | 7730 × 2580 × 3070(Length×Width×Height) | ||
| Chassis Dimension（mm） | 6980× 2560 × 2800(Length×Width×Height) | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 10120 |
| Max. Power(kW/rpm) | 177 | Axlebase(mm) | 1940/1960 |
| Wheelbase(mm) | 4200 | Displacement(L) | 7.225 |
| Approach Angle (°) | 35 | Departure Angle (°) | 20 |
| Front Suspension(mm) | 1220 | Rear Suspension(mm) | 1220 |
| Fording Depth(mm) | 710 | Ground Clearance(mm) | 360 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 210 |
| Upper frame plane off the ground（mm） | 1200 | Overrun height（mm） | 590 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
