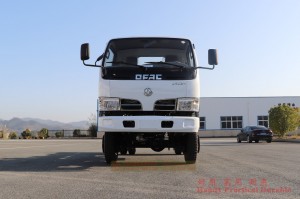

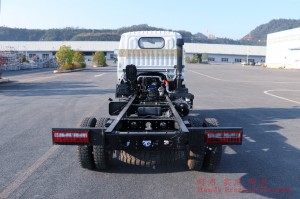

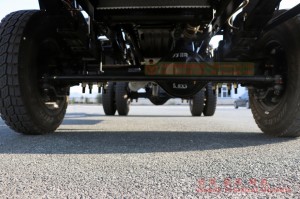

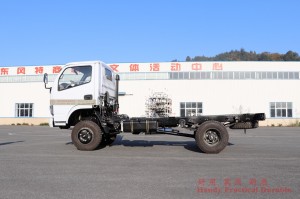

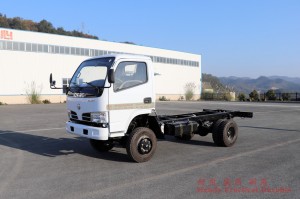

Four Drive Dongfeng Light-duty Series Truck Chassis
Product Description
Four wheel drive Furuka light card chassis, which is redesigned by our company on Dongfeng Furika. The car is small and light, the function is diverse, can be modified into a green spray car according to customer needs, a compressed garbage truck, a fresh water product refrigerated transport vehicle, dangerous goods transport vehicle, small trucks, etc.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | 4100QB , straight four cylinder, natural inhale, water cold, four stroke |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | Three seats |
| Axle | Max. Load 1.5Tons/4.5Tons (Front/Rear) |
| Tyre | 7.00-16(6 + 1) |
| Other | Hydraulic steering power, exhaust braking |
| Performance Parameter | |||
| Overall Dimension(mm) | 6220 × 1880 × 2580(Length×Width×Height) | ||
| Modification size(mm) | 4700 | ||
| Total Mass(kg) | 7910 | Curb Weight(kg) | 4550 |
| Max. Power(kW/rpm) | 58.8 | Max. Torque(N.m) | 200 |
| Wheelbase(mm) | 3300 | Displacement(L) | 3.2 |
| Approach Angle (°) | 30 | Departure Angle (°) | 26 |
| Ground Clearance(mm) | 235 | Max. Gradeability (%) | 60 |
| Max. Speed(km/h) | 78 | Tank Capacity(L) | 120 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
