Four drive Low flat mine use Dump Truck
Product Description

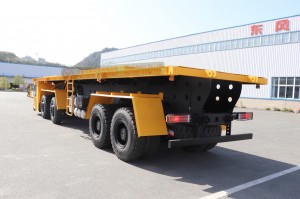

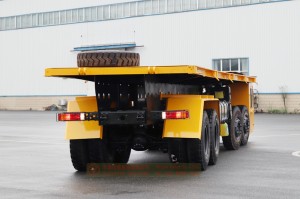

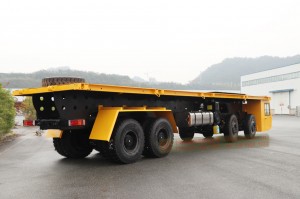

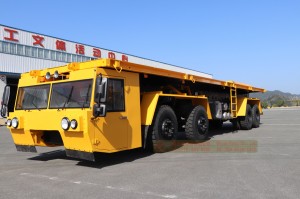

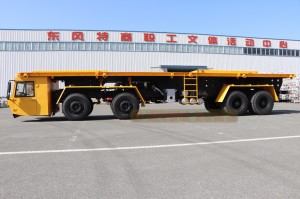

8 × 4 Low flat transport vehicles, the car is used for special road conditions transporting goods, such as port, logistics. There is a ladder on the left and right, which is convenient to load large cargo containers, cars, etc., up to 22T cargo.
Product Parameter
| Basic Configuration | |
| Drive Mode | 8×4 |
| Engine | Weichai 340 horsepower |
| Gearbox | Mechanical Manual eight speed |
| Transfer case | High-low speed |

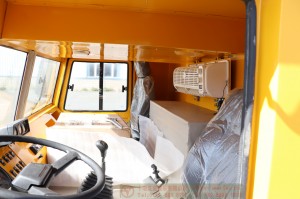

| Cab | One seat, flat head Welding cab, driver shock shock seat with air conditioning |
| Axle | Max. Load 7.5Tons/13Tons (Front/Rear) |
| Tyre | 12.00R20 (12 + 1) |
| Electrical appliance | 24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 12850 × 2650 × 2060(Length×Width×Height) | ||
| Flat Length(mm) | 12650 | ||
| Total Mass(kg) | 18000 | Curb Weight(kg) | 7800 |
| Wheelbase(mm) | 4200 | Tank Capacity(L) | 350 |
| Approach Angle (°) | 11 | Departure Angle (°) | 35 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
