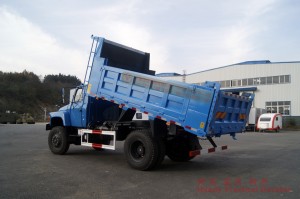

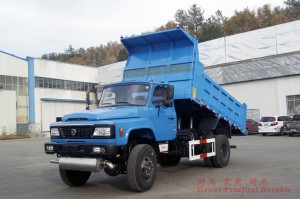

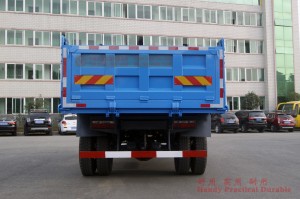

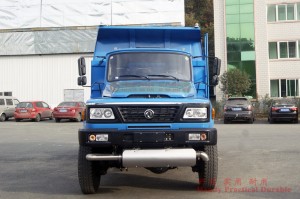

Four wheel drive long head EQ1093 dump truck

Short Description:


Product Detail

Product Tags

Product Description

EQ1093 is a classic vehicle model which is more suitable for civilians than other military vehicles.

Product Parameter

Basic Configuration
Drive Mode 4×4
Engine Cummins B170 33
Gearbox Mechanical Manual five speed
Transfer case High-low speed
Cab Three seats
Axle Max. Load 3Tons/8.5Tons (Front/Rear)
Tyre 9.00-20 (6 + 1)
Electrical appliance 24V circuit system
Other Hydraulic steering power, exhaust braking
Performance Parameter
Overall Dimension(mm) 7000 × 2500 × 2900(Length×Width×Height)
Cargo size(mm) 4050 × 2300 × 800
Total Mass(kg) 11490 Curb Weight(kg) 5545
Max. Power(kW/rpm) 125 Max. Torque(N.m) 560
Wheelbase(mm) 3950 Displacement(L) 5.9
Approach Angle (°) 45 Departure Angle (°) 44
Max. Speed(km/h) 87 Max. Gradeability(%) 60

This parameter is for reference only. The margin of error is plus or minus three percentage points.
