Iveco 4*4 RV
Product Description
Iveco 4*4 RV has extraordinary performance, equipped with an engine that can maintain a stable ability on steep mountain roads, through the power performance with the help of which we can move forward smoothly in bad road conditions, saving the fuel consumption of the car, while being more safe and reliable. And, the RV is equipped with comfortable and luxurious space with spacious seats, which is more suitable for everyone to travel. Iveco RV has superb off-road four-wheel drive capability, load-bearing capacity, high passability and driving comfort.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | SOFIM8142.43 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |

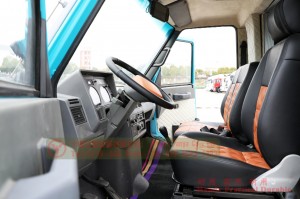

| Cockpit | Iveco short head single row |
| Cab | Three seats |
| Axle | 1.5Tons/3.5Tons (Front/Rear) |
| Steel plate spring | -/4+3 pieces |
| Tyre | LT285/70R17 (all-terrain off-road tires) (4 + 1) |
| Other | Luggage rack, Spare tire, Elevator reverse chain, 3 high-power Searchlights |
| Performance Parameter | |||
| Overall Dimension(mm) | 5880 × 2185 × 2940(Length×Width×Height) | ||
| Outside dimension(mm) | 3670 × 2185 × 2310(Length×Width×Height) | ||
| Max. Power(kW) | 87 | Max. Torque (N.m/rpm) | 269/1800 |
| Wheelbase(mm) | 3450 | Tank Capacity(L) | 210 |
| Approach Angle (°) | 31 | Departure Angle (°) | 28 |
| Displacement（ml） | 2798 | Fording Depth (mm) | 550 |
| Front Suspension(mm) | 950 | Rear Suspension(mm) | 1480 |
| RV Configuration | |||||||||||||
| The compartment is made of aluminum alloy, sandwich structure, heat insulation, soundproof, waterproof and fireproof, the height of the compartment is 1900mm. 4 double-layer acrylic vacuum glass windows (with screen, sunshade function). | |||||||||||||
| 10 degrees lithium battery (with car charging) | 3000W inverter | ||||||||||||
| Clear water tank 120L | Gray water tank 60L | ||||||||||||
| through the storage box (connected with the RV) | External pull-out kitchen | ||||||||||||
| Folding handrail | 2.5×3m manual awning | ||||||||||||
| Folding secondary step | Double anti-theft and anti-mosquito doors | ||||||||||||
| Four-way monitoring (with height limit alarm,compartment and cab can be viewed) | 108L refrigerator | ||||||||||||

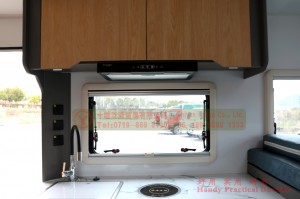

| Vegetable washing pool | Range hood | ||||||||||||
| Induction cooker | Large space storage cabinets | ||||||||||||
| Retractable double bed (2000 × 1400mm) | Lift table (lowered programmable single bunk) | ||||||||||||
| Reading lights | Dometic top system air conditioning | ||||||||||||
| Manual sunroof (with lighting) | Australian gas water heater | ||||||||||||
| Dual-jet shower | Sink (with pull-out function) | ||||||||||||
| Imported rotary toilet | Two-way exhaust fan(with lighting and rain sense function) | ||||||||||||
This parameter is for reference only. The margin of error is plus or minus three percentage points.
