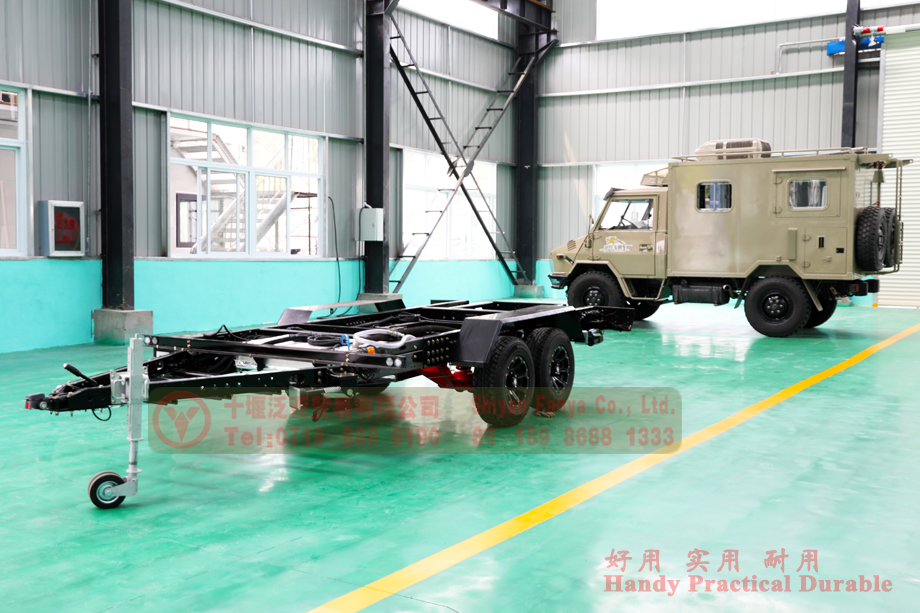

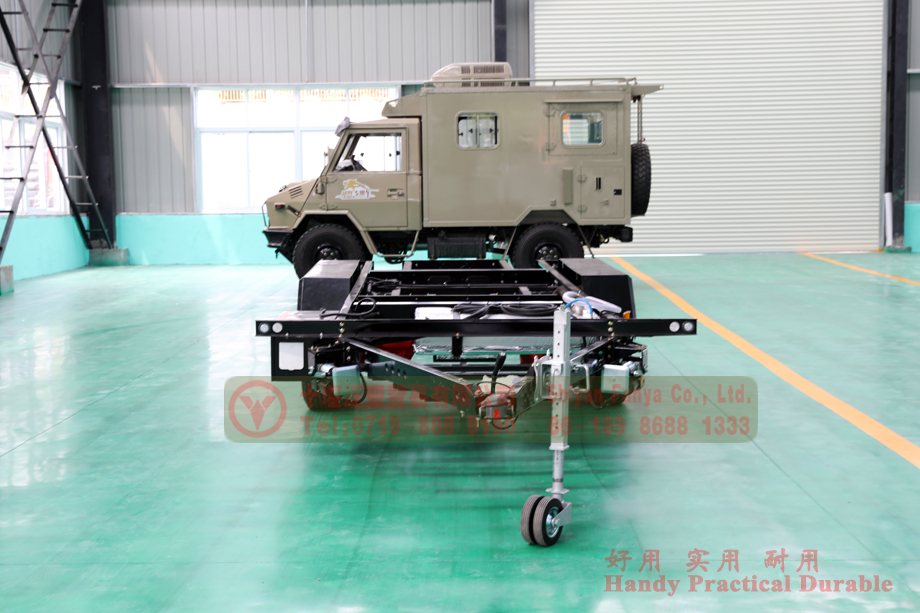

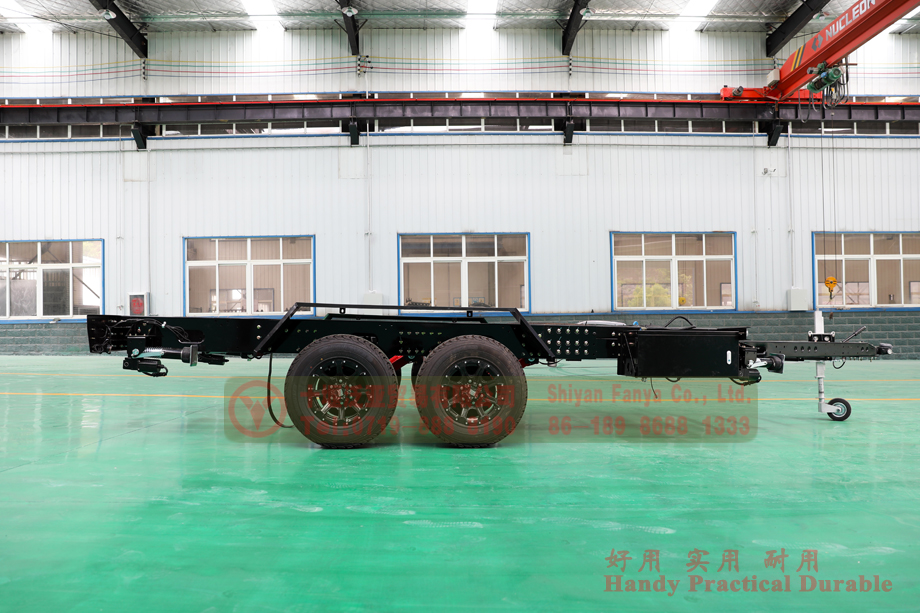

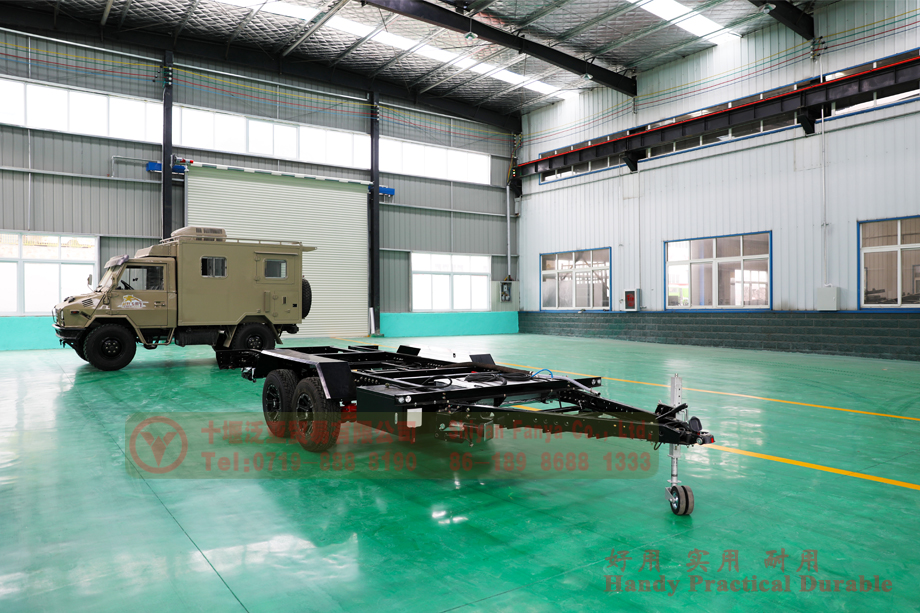

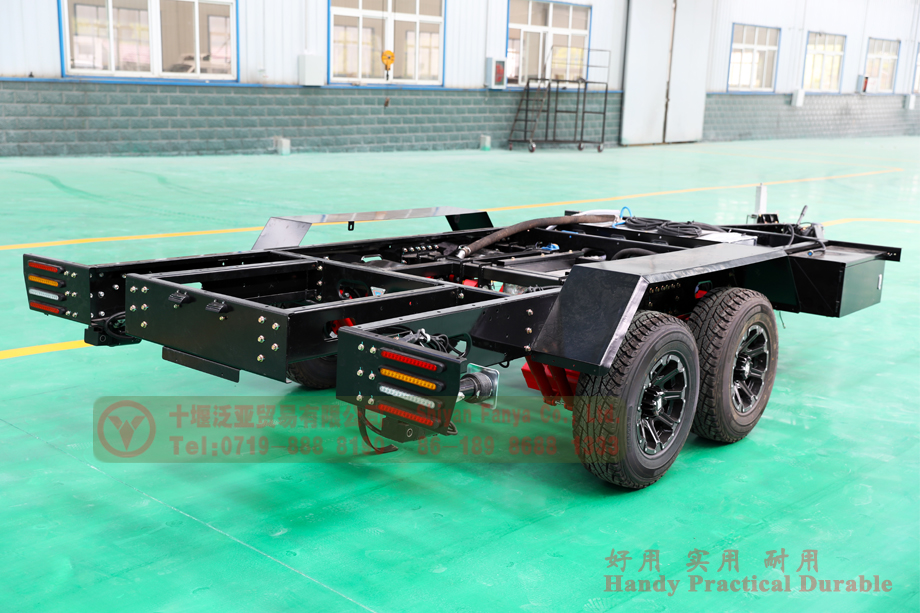

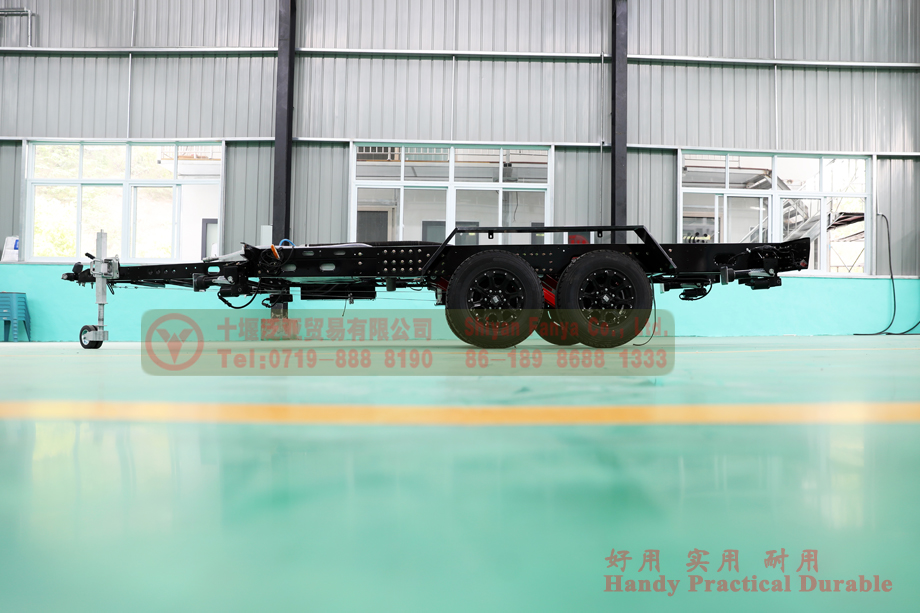

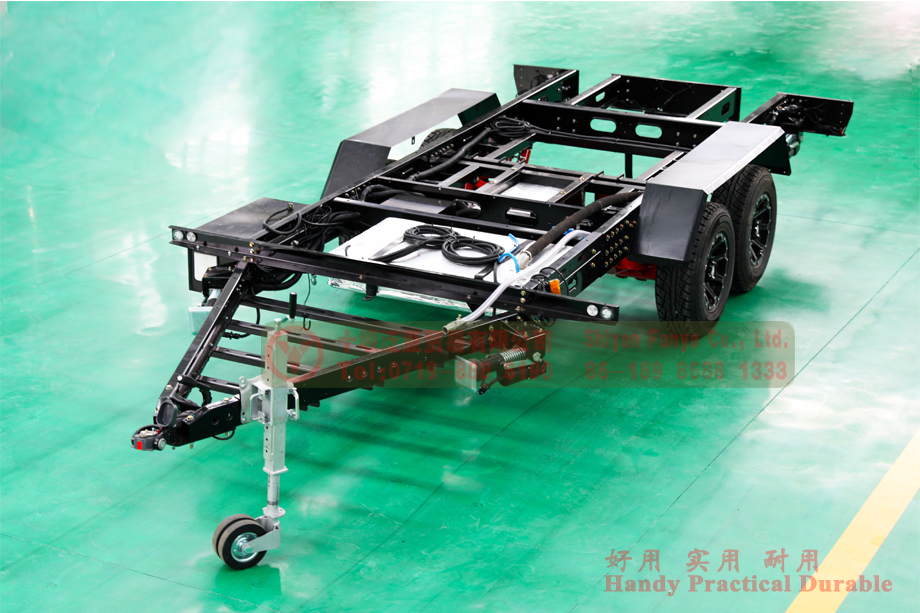

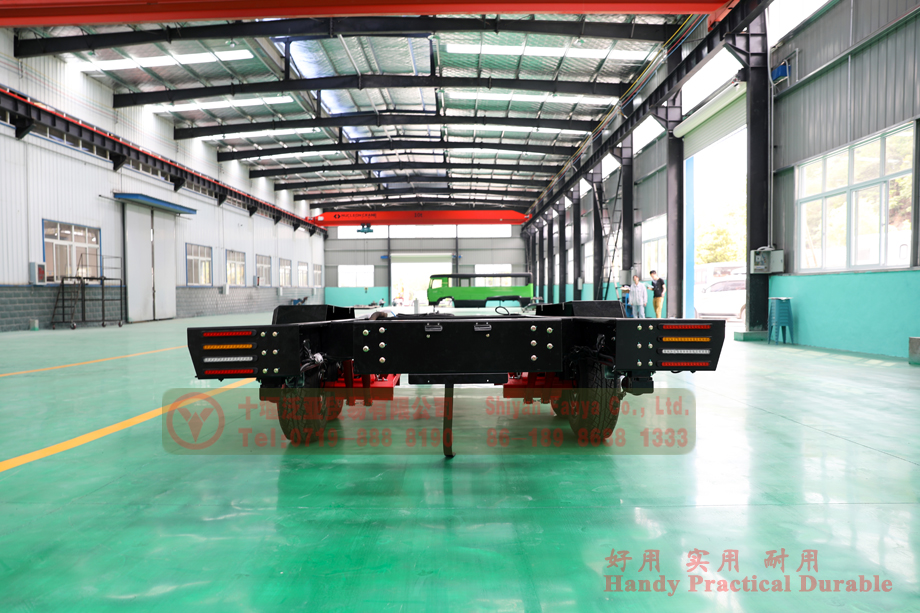

This is a trailer chassis for Drone fire truck. The overall length of the chassis is 5970mm, width is 2260mm, wheelbase is 1900mm, axle base is 3700+820mm.

the chassis adopts Australian 3.5 tons tractor head, installed hand brake, guide wheel.The chassis suspension is Australian type 3 tons independent suspension.

The double-axle guide wheel can carry up to 6 tons of weight. The overall frame is made of 510 automobile beam steel, pressed and bent, and formed at one time.

There are four parking outriggers with a single load capacity of 3 tons, and the remote control can be used for one-touch FM. The tires are 23.75R15 type off-road tires. The chassis is equipped with 48V lithium battery ,battery heating system below 0℃. The chassis is also equipped with integrated control system(power display meter, battery heating temperature display meter, etc.),

external charging port. Chassis by pickling and phosphating. and surface treatment electric paint. We customize 100L gasoline tank and gasoline pump for customers.The chassis of this Australian imported trailer caravanis based on the structure design of many foreign advanced trailer caravans

and our company’s experience in designing trailer caravans for many years, with the intersection of Australian imported tractor head and independent suspension,

which can carry up to 6 tonsand can be converted into trailer caravans and various trailers according to the needs of users.

Special off-road special tires,high-strength frame structure can be normal driving in bad road conditions.
