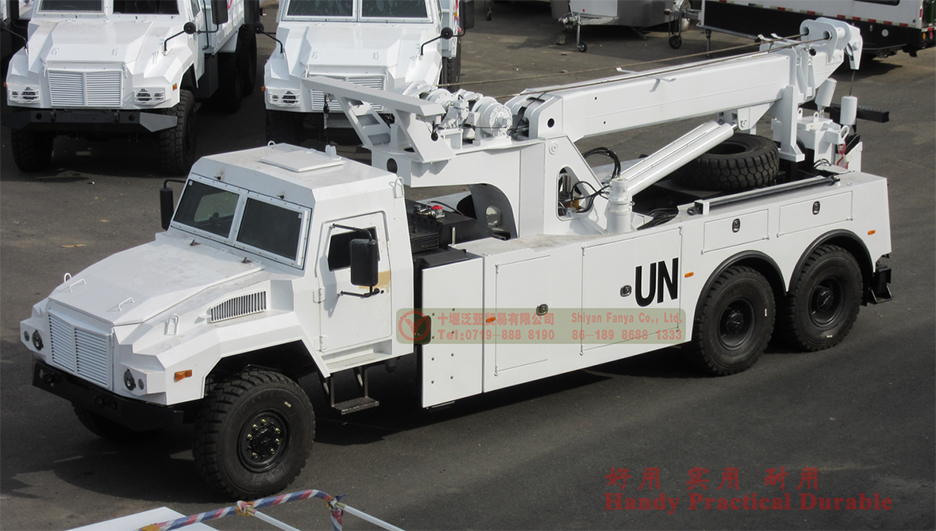

If you’re looking for a vehicle that is good for car rescues on rough road conditions, look no further than our company’s UN obstacle removal rescue mobile crane!

The vehicle is highly practical. It can be successfully started at a temperature from -20℃ to 55℃ and at an altitude of 5000m. The rear of the cabin and the frame are equipped with a hydraulic lifting system with a 360° rotation. Together with 4 hydraulic cantilevers, the hydraulic lifting system is capable of lifting 16 tons. The boom can extend 9 meters with a maximum lifting Angle of 60°. When it is fully extended at 0°, it can lift 1600kg. Maximum rescue of the front winch is 25 tons. The high strength tow coupler at the tail has a towing capacity of 25 tons. Special rescue tools on the vehicle include shovels, wooden rollers, sledgehammers, chain lifts and simple fuel tank locks. The outer side and bottom of the tank can be equipped with 6mm bullet-proof steel plate protection.

During the product design process, we focus on ensuring the safety and the comfort of the drivers. The cabin is equipped with yellow rotating warning lights. The no-driver area at the front can be coated with 4mm thick steel plates. The driving area is equipped with 6mm thick bullet-proof steel plates and 39mm thick protective glass, which meet the EN1063-2000 (B6) and STANAG4569 Class I bullet-proof standard. The cabin also contains an air conditioner, adjustable seats, a FM radio, an audio player and so on.

The maximum speed of the vehicle is 90km/h; The maximum climbing slope is 60%; The fuel consumption is less than 22L per 100km under certain conditions; The maximum driving range is greater than or equal to 600km.

The car uses the Dongfeng Cummins C260 inline six cylinder and a supercharged and inter-cooled diesel engine. The power of the vehicle is 191kw. The axles are equipped with a cast/punch welded axle housing. They have differential locks and the function of wheel side deceleration. The front axle is the 7 tons integral axle, and the middle/rear axle is the 10 tons + 10 tons integral axle. There are six 14.00R20 tyres specific for off-road use, plus a spare tyre. Bullet-proof inner support bodies and central vents are optional for the tyres.

Hubei Off-road Special Vehicle Co., Ltd sincerely welcomes your inquiries and collaboration!
