Six wheel drive Dongfeng EQ2102N Off-road water spraying vehicle
Product Description

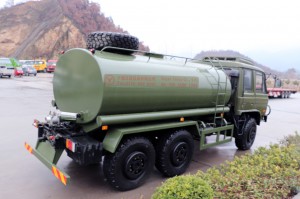

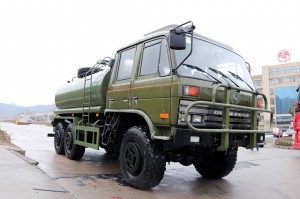

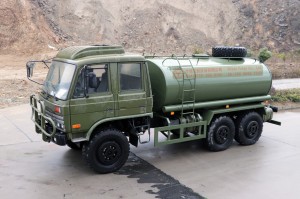

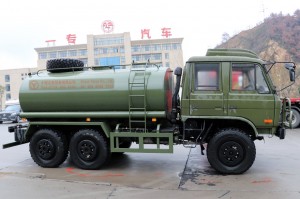

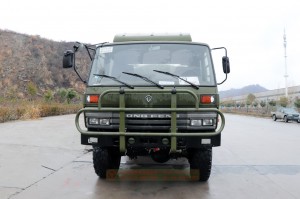

Dongfeng EQ2102N off-road carrier as a classic domestic military vehicle. This water spraying vehicle is modified from Dongfeng EQ2102N Chassis.
Product Parameter
| Basic Configuration | |
| Drive Mode | 4×4 |
| Engine | Cummins B190 33 |
| Gearbox | Mechanical Manual six speed |
| Transfer case | High-low speed |
| Cab | Three seats, Dongfeng 153 flat head double row In-room fire frame, rear window protection net |
| Axle | Max. Load 3.7Tons/3.5Tons/3.5Tons (Front/Middle/Rear) |
| Tyre | 12.5R20 |
| Electrical applicance |
24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 7340 × 2470 × 2890(Length×Width×Height) | ||
| Tank Volume(m³) | 8~10 | ||
| Total Mass(kg) | 10850 | Curb Weight(kg) | 7800 |
| Max. Power(kW/rpm) | 140 | Max. Torque(N.m) | 640 |
| Wheelbase(mm) | 3475 + 1250 | Displacement(L) | 5.9 |
| Approach Angle (°) | 35 | Departure Angle (°) | 34 |
| Ground Clearance(mm) | 305 | Fording depth (mm) | 1035 |
| Max. Speed(km/h) | 90 | Tank Capacity(L) | 140+70 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
