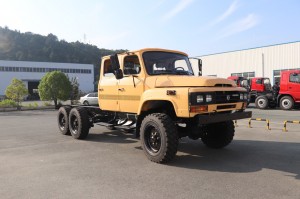

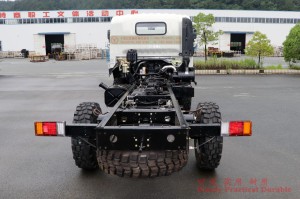

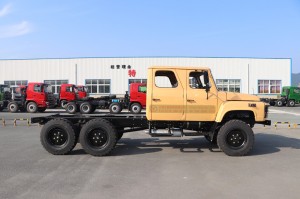

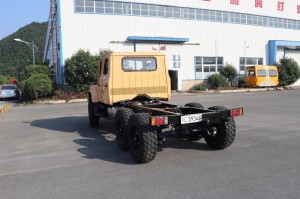

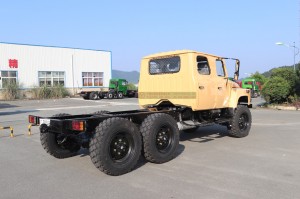

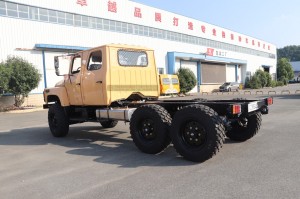

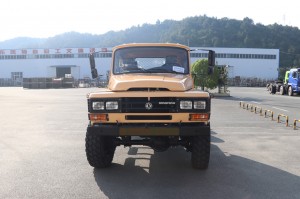

Six wheel drive long head double row new EQ2082 off-road chassis
Product Description
Six wheel drive long head Double-row new 2082 off-road chassis expands to two rows in the original EQ140 cab, which can carry more people. The frame uses Dongfeng EQ2082 military chassis, depending on its excellent off-road performance and adaptability, can be customized according to user needs.
Product Parameter
| Basic Configuration | |
| Drive Mode | 6×6 |
| Engine | Cummins B170 33 |
| Gearbox | Mechanical Manual five speed |
| Transfer case | High-low speed |
| Cab | long head Double-plate large glass cab, all metal welding closed structure, The rear window has a protective net, the cab front cover light has a protective net, which is equipped with air defense lamps. |
| Axle | Max. Load 2.6Tons/5.1Tons (Front/Rear) |
| Tyre | 11R18 |
| Electrical appliance | 24V circuit system |
| Performance Parameter | |||
| Overall Dimension(mm) | 6700 × 2150 × 2400(Length×Width×Height) | ||
| Modification size(mm) | 3070 | ||
| Total Mass(kg) | 7800 | Curb Weight(kg) | 4370 |
| Max. Power(kW/rpm) | 125 | Max. Torque(N.m) | 490 |
| Wheelbase(mm) | 3620+1080 | Displacement(L) | 5.9 |
| Approach Angle (°) | 37 | Departure Angle (°) | 38 |
| Ground Clearance(mm) | 275 | Max. Speed(km/h) | 80 |
This parameter is for reference only. The margin of error is plus or minus three percentage points.
